Section 5.7

Cylinder & Piston Tools

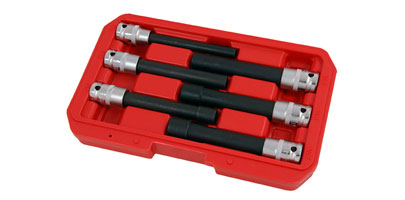

Star Socket Set - 6pc

CT4019

Star Socket Set - 6pc

6pc Star / E-Type Sockets
Sizes : E10 | E12 | E14 | E16 | E18 | E20.
1/2in.Dr x 140mm long
Used for cylinder head bolts

Star Socket Set - 6pc
t Click picture for more information
Piston Ring Pliers

CT2319

Piston Ring Pliers

50 - 100mm diameter Piston Ring Pliers

Piston Ring Pliers
t Click picture for more information
Piston Ring Pliers

CT3595

Piston Ring Pliers - 80-120mm

80 - 120mm Piston Ring Pliers
Works on most makes and models of vehicles.
Smooth gripping edge to prevent damage to the Piston ring.

Piston Ring Pliers
t Click picture for more information
Piston Ring Pliers

CT3596

Piston Ring Pliers - 110-160mm

110 - 160mm Piston Ring Pliers
Works on most makes and models of vehicles.
Smooth gripping edge to prevent damage to the Piston ring.

Piston Ring Pliers
t Click picture for more information
250mm Valve Stem Seal Ring Pliers

CT3899

Valve Stem Seal Ring Pliers - 250mm

250mm Valve Stem Seal Ring Pliers
For easy removal of deep seated valve stem seals
Suitable for most vehicle makes and models

250mm Valve Stem Seal Ring Pliers
t Click picture for more information
270mm Valve Stem Seal Ring Pliers

CT3900

Valve Stem Seal Ring Pliers - 270mm

270mm Valve Stem Seal Ring Pliers
For easy removal of deep seated valve stem seals
Suitable for most vehicle makes and models

270mm Valve Stem Seal Ring Pliers
t Click picture for more information
Digital Pressure Tester

CT3781

Digital Pressure Tester

Automotive Digital Data Scanner Kit
Diesel Common Rail High Pressure Tester.
Dynamic test : measures actual pressure in
common rail circuits with engine running.
Stores maximum pressure value.
Wireless transmitter sends data to a computer.
Automatic engine start from tester

Digital Pressure Tester
t Click picture for more information
Bore Inspection Camera

CT3235

Inspection Camera / Bore Scope

Digital Inspection Camera or Bore Scope
60mm Colour LCD Display with 640 x 480 JPEG resolution.
38in. watertight flexi-shaft with oil and scratch resistant glass lens.
16mm CMOS image probe.
LED lights.

Bore Inspection Camera
t Click picture for more information
Borescope Monitor

CT1960

Borescope and Monitor

Borescope with LCD Monitor
2M Cable / Probe Diameter - 5.5mm
NTSC and PAL Recording Format
Mini USB 1.1 AV out or Records on SD card up to 2Gb

Borescope Monitor
t Click picture for more information
Petrol Engine Compression Test Kit

CT0589

Engine Compression Test Kit

3pc Petrol Engine Compression Test Kit
Fitted with 65mm diameter gauge
with 4 scales - Psi | Bar | kg/cm | kPa.
150mm Quick coupling with cone adaptor
320mm flexible adaptor with
14 and 18mm screw in adaptors.
Supplied with instructions.

Petrol Engine Compression Test Kit
t Click picture for more information
Compression Tester Kit

CT2571

Compression Tester Kit

Petrol Engine Compression Tester
Thread size - M8 x 1.5. M10 x 1.0. M12 x 1.25. M14 x 1.25
Straight and Angled Push-on Connectors
Flexible Extension - 400mm

Compression Tester Kit
t Click picture for more information
Engine Compression Test Kit

CT3620

Engine Compression Test Kit

Engine Compression Test Kit
For both petrol and diesel vehicles.
Features 600psi gauge with large rubber bumper
straight and right angled quick connect fittings and
a range of spark / glow plug and injector adaptors.
This kit will cover most modern vehicles
Spark Plug Sizes : 10 .12 .14 .18mm
Injector Adaptors : M20 . M22 . M24

Engine Compression Test Kit
t Click picture for more information
Engine Compression Test Kit

CT3615

Compression Test Kit - 7pc

7pc Pressure Loss Testing Kit
Compression testing on Diesel and Petrol engines.
Includes Gauge with Adaptors for single and multi-valve engines.
M10 to M24
Maximum pressure : 6.8 bar or 100 psi.
Suitable for most Vehicles and Motorcycles.

Engine Compression Test Kit
t Click picture for more information
Diesel Compression Test Set

CT3006

Diesel Compression Test Set

14pc Diesel Compression Test Set
Supplied with Gauge and Adaptors
Gauge reads 0-1000psi and 0-70bar with 368mm Hose and Release Valve

Diesel Compression Test Set
t Click picture for more information
Engine Compression Test Set

CT1866

Compression Test Set - Diesel

Compression Test Set - Diesel Engines
Dual Scale Gauge
Glow Plug Adaptors
Dummy Injectors
Stanadyne Dummy
Replacement Seal and Washer Set
90 Degree Elbow

Engine Compression Test Set
t Click picture for more information
Engine Compression Test Set.

CT1865

Compression Test Set - Petrol

Compression Test Set - Petrol Engines
Thread Chasers - M10. M12. M14. M18
For use on engines with deep seated plug ports with difficult access

Engine Compression Test Set.
t Click picture for more information
Oil Pressure Test Kit

CT3922

Oil Pressure Test Kit

Oil Pressure Test Kit
Helps to diagnose worn oil pumps and engines
faulty oil pressure switches and pressure warning indicators.
1M long flexible hose enables access to
difficult to reach oil switch ports.
Small profile quick coupling adaptors with built-in shut-off valve.
10 x oil switch port adaptors.
Gauge Scale 0 - 10 bar | 0 - 140psi.
80mm Diameter Gauge

Oil Pressure Test Kit
t Click picture for more information
Oil Pressure Tester

CT3524

Oil Pressure Tester

Automatic Wave Box Pressure Meter
Diagnose problems with oil pressure in virtually all diesel and petrol engines.
Dual scale gauge - 0 - 500psi / 0 - 35bar.
Hose - 1800mm 1/8 NPT oil proof.
Includes 1/4 and 3/8 NPT Adaptors.

Oil Pressure Tester
t Click picture for more information
Cylinder Hone

CT2757

Cylinder Hone

Cylinder Hone
50 - 180mm / 2 to 7in. diameter
Flexible shaft for ease of use and self centering

Cylinder Hone
t Click picture for more information
Piston Ring Compressor

CT2195

Piston Ring Compressor

53 - 175mm diameter Piston Ring Compressor

Piston Ring Compressor
t Click picture for more information
Piston Ring Compressor

CT2196

Piston Ring Compressor

60 - 175mm diameter Piston Ring Compressor

Piston Ring Compressor
t Click picture for more information
Piston Ring Compressor Set

CT3565

Piston Ring Compressor Set

7pc Piston Ring Compressor Set
Ratchet Piston Ring Compressor Pliers with 6 Bands.
For compressing Piston rings in small increments
Enabling the installation of Piston rings ranging from 73 to 111mm.
Bands Swivel allowing use at various angles.

Piston Ring Compressor Set
t Click picture for more information
Piston Ring Service Tool Set

CT3502

Piston Ring Service Tool Set - 11pc

11pc Piston Ring Compressor Set
75mm High : 53 - 125mm.
90mm High : 90 - 175mm.
100mm High : 90 - 175mm.
Piston Ring Pliers : 50 -100mm.
Groove cleaning : 51 -127mm
3 Cleaning blades and Offset Driver

Piston Ring Service Tool Set
t Click picture for more information
Valve Collet Installation Kit

CT3599

Valve Collet Installation Kit - 4pc

Valve Collet installing and Pick-up Tool Set
This tool holds the valve keepers in its magnetic jaws
to place the keepers into the valve stem grooves for installation.
Reaches into recessed spring pocket
to retrieve released valve keepers.
Set contains 3 valve keeper installing tools
and flexible magnetic pick up tool

Valve Collet Installation Kit
t Click picture for more information
Valve Lapper Set

CT3030

Valve Lapper Set - 2pc

2pc Valve Lapper Set
Ideal for hand lapping small and large head unslotted valves
Use with lapping compound ( not supplied )
Suction Caps - 5/8 . 13/16 . 1-1/8 . 1-3/8in.

Valve Lapper Set
t Click picture for more information
Air Operated Valve Lapping Tool

CT4429

Air Operated Valve Lapping Tool

Air Operated Valve Lapping / Grinding Tool
Rubber suction cups : 20 | 30 | 35 | 45mm
Speed : 3000 rpm
with Adjustable Regulator for precise control.
Hose inner diameter : 10 mm
Air consumption : 1001/m
Designed for operating in tough environments.

Air Operated Valve Lapping Tool
t Click picture for more information
Valve Lapping Tool Attachment

CT4609

Valve Lapping Tool Attachment

Valve Lapping Tool Attachment
With 8mm shaft
4 suction cups : 20 | 30 | 35 | 45mm
Working speed : 1000rpm to 1250rpm max
Automatic change in direction.
Facilitates the insertion of valves.
For use with fine grinding paste.
Can be used with CT4429.

Valve Lapping Tool Attachment
t Click picture for more information
Valve Lifter

CT3029

Valve Lifter / Remover

Heavy Duty Hydraulic Valve Lifter / Remover essential tool which enables most hydraulic valve tappets to be removed.
With Slide Hammer for stubborn tappets.

Valve Lifter
t Click picture for more information
Valve Seal Puller

CT4391

Valve Seal Puller

Double Ended Seal Puller
200mm Long with Tapered Ends.
Removes hard to reach seals with ease.

Valve Seal Puller
t Click picture for more information
Valve Seal Installation Kit

CT2577

Valve Seal Remover and Installer

11pc Valve Seal Remover and Installer Kit
Valve Stem Seal Pliers
Drive Handle - 6in. / 150mm
Deep Seal Sockets - O.D 10.8 - 14.8mm
Adaptors - 5. 5.5. 6. 6.5. 7. 8mm and 3/8in.

Valve Seal Installation Kit
t Click picture for more information
Overhead Valve Spring Compressor

CT0586

Valve Spring Compressor

Overhead Valve Spring Compressor
For most OHV / OHC and CHV engines
Not suitable for deep seated valves.
Valve springs and valve stem oil seals
can be replaced with the cylinder head in-situ.
Reversible Jaw / Adaptor with
automatic cam-action locking.
Overall length : 250mm

Overhead Valve Spring Compressor
t Click picture for more information
Valve Spring Compressor

CT4177

Valve Spring Compressor

Valve Spring Compressor 35 - 200mm
For large petrol or Diesel engines
2 Valve spring pressure pieces:
outside dia. 25 mm for spring dia. 21 - 25 mm
outside dia. 30 mm for spring dia. 24 - 30 mm
Chrome plated

Valve Spring Compressor
t Click picture for more information
Valve Spring Compressor Kit

CT1112

Valve Spring Compressor Kit

10pc Valve Spring Compressor Kit
5 Adaptors for various spring diameters
16 | 19 | 23 | 25 | 30mm or 5/8 to 13/16in.
Ideal for Motorcycles and Small Bore Engines

Valve Spring Compressor Kit
t Click picture for more information
Valve Spring Compressor Kit

CT3365

Valve Spring Compressor Kit

Valve Spring Compressr Kit
One -man Operated for OHV and OHC petrol or diesel engines

Valve Spring Compressor Kit
t Click picture for more information
Cylinder Head Service Kit

CT3614

Cylinder Head Service Kit

Universal Valve Spring Compressor
Complete upper engine service kit
enables in-situ removal and replacement of
valve springs / guides and seals
Suitable for 8 | 16 and 24 valve engines.
With Collet Tool | Valve Stem Seal Pliers
and Valve stem seal replacement kit

Cylinder Head Service Kit
t Click picture for more information
Cylinder Head Re-build Kit

CT4175

Cylinder Head Re-build Kit - Diesel

VAG / Porsche Diesel Head Rebuild Jig
for fitting camshafts into cylinder heads during head rebuilds.
Applicable to VAG and Porsche vehicles with diesel engines

Cylinder Head Re-build Kit
t Click picture for more information
Rigid Offset Scraper

CT3003

Rigid Offset Scraper

32mm Rigid Offset Scraper

Rigid Offset Scraper
t Click picture for more information
Scraper Set

CT3302

Scraper Set - 3pc

Scraper Set - 3pc 10 x 270mm / 25 x 220 / 310mm

Scraper Set
t Click picture for more information



Product Search

Search Icon
Section 1 Icon Section 2 Icon Section 3 Icon Section 4 Icon Section 5 Icon Section 6 Icon Section 7 Icon Section 8 Icon Section 9 Icon Section 10 Icon

© Cannon Tools Limited  -  2017 All Rights Reserved   •  20 Station Road,  Rowley Regis,  West Midlands,  B65 0JU,  United Kingdom  |  T +44 (0) 121 561 6760
