Section 5.13

Ford / Mazda Timing Tools

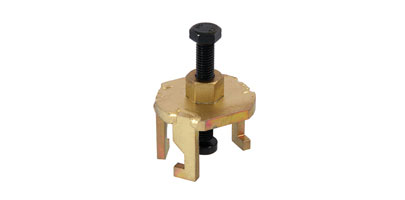

Ford Camshaft Sprocket Puller

CT3918

Camshaft Sprocket Puller - Ford

Ford Camshaft Sprocket Puller
Size 90 x 65mm
Applicable to - F8M | F8Q | S8U | S9U
Also suitable for removing the Impeller.

Ford Camshaft Sprocket Puller
t Click picture for more information

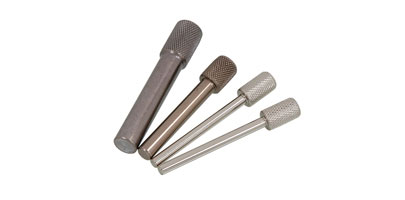

Engine Timing Tool Pins / Locks

CT4850

Timing Tool Pins

Engine Timing Tool Set
for Ford / Mazda / PSA / Volvo
For setting engine timing when replacing the camshaft or cylinder head gasket.
Camshaft locking pin. Flywheel locking bolt
Crankshaft / high pressure pump locking pin.
PSA - Citroen / Peugeot 1.4 / 1.6 Hdi
Mazda 1.4CiTD
Ford 1.4TDCi / 1.6TDCi
Volvo 1.6D

Engine Timing Tool Pins / Locks
t Click picture for more information

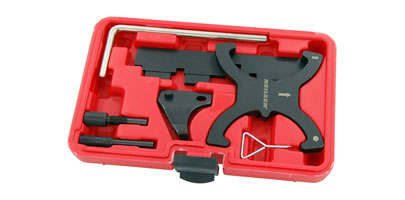

Ford Duratec Engine Timing Tool Set

CT4649

Timing Tool Set - Ford

7pc Engine Timing Tool Set for Ford 1.6 TI-VCT Duratec Engines
For timing belt replacement on 1.6 Ti-VCT Duratec EcoBoost Engines.
With Camshaft / Crankshaft and Flywheel Locking Pins
used to lock the camshafts in their timed position
when removing belts and pulleys during servicing.
Suitable for many other petrol and diesel Ford engines.

Ford Duratec Engine Timing Tool Set
t Click picture for more information

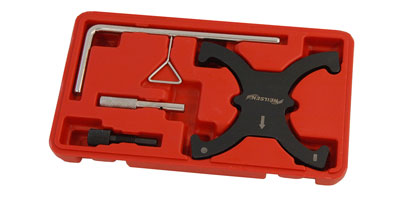

Ford Focus Timing Tool Set

CT4630

Timing Tool Set - Ford Focus

5pc Engine Timing Tool Set for Ford Focus
For replacing the cam belt on Ford Focus
1.6 TI-VCT | 2.0 TDCI / 2003 - 2007
Camshaft Sprocket Holding Tool
Camshaft Sprocket Locking Tool
Tensioner Pulley Locking Pin
Crankshaft Timing Pin
Flywheel Timing Pin

Ford Focus Timing Tool Set
t Click picture for more information
Ford and Mazda Timing Tool Set

CT3429

Timing Tool Set - Ford / Mazda

Ford / Mazda Timing Tool Set
Combination kit of Setting and Locking Tools
suitable for a wide range of Ford petrol and diesel engines.
Includes camshaft and flywheel locking tools various timing pins
plus a camshaft sprocket removal tool.
Also suitable for Land Rover / Mazda / PSA / Suzuki and Volvo vehicles.

Ford and Mazda Timing Tool Set
t Click picture for more information

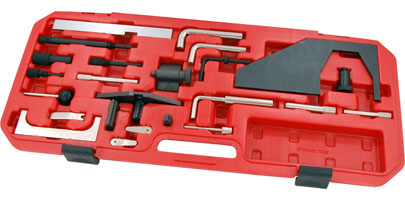

Ford / Mazda Timing Locking Tool Set

CT3890

Timing Locking Tool Set - Ford / Mazda

Ford / Mazda Timing Tool Set
Also compatible with other manufacturers.
For adjustment of flywheel / crankshaft / camshaft / fuel injection pump / belt pulley / timing belt tensioning
includes adjusting gauge for camshaft / crankshaft / pump shaft.
Applicable to 1.6 | 1.8 | 1.9 diesel engines from 1997

Ford / Mazda Timing Locking Tool Set
t Click picture for more information

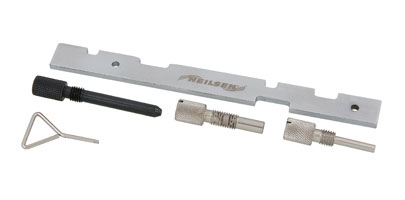

Ford / Mazda Timing Locking Tool Set

CT4064

Timing Tool Set - Ford / Mazda

Petrol Engine Setting / Locking Kit - Ford | Mazda | Volvo
Covers the complete range of Ford Duratec engines
1.25 through to 2.3 16V in both belt and chain drive variants.
Also suitable for Duratec engines in Mazda and Volvo vehicles.
See detail page for full list of vehicles and engine codes.

Ford / Mazda Timing Locking Tool Set
t Click picture for more information

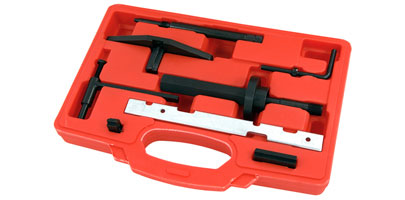

Ford Chain Drive Timing Tool Set

CT4065

Timing Tool Set - Ford Chain Drive

Ford Diesel Engine Timing Kit
for Chain Drive 1.8TDDi / TDCi engines
For timing belt replacement on diesel engines
fitted to Ford 1.8TDDi / TDCi chain drive vehicles
and high pressure fuel pump Wet Belt applications.
With high pressure pump sprocket removal
and timing chain cover alignment tools.

Ford Chain Drive Timing Tool Set
t Click picture for more information

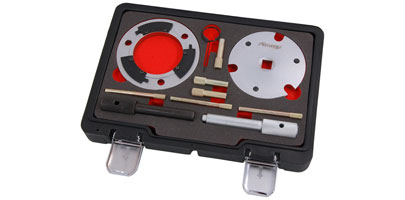

Ford Timing Setting Kit

CT3374

Timing Tool Set - Ford

Ford Timing Tool Kit
Models : Mondeo | Transit / 01-04
Engines : 2.0 / 2.4 TDI TDCI 16V Duratorq
To remove and replace the injection pump.
Mounting / Demounting tool for the injection pump.
With 4 Crankshaft Locking Pins

Ford Timing Setting Kit
t Click picture for more information

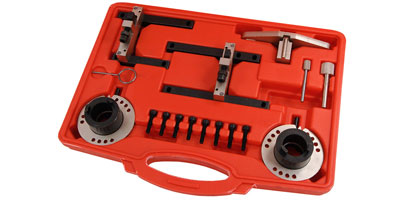

Ford EcoBoost Timing Kit

CT4856

Timing Tool Set - Ford

Ford Engine Timing Tool Set
For aligning the engine timing on 1.0 litre Ecoboost 3 cylinder SCTi petrol engines.
Applicable to : B-Max | C-Max | Grand C-max.
EcoSport | Fiesta | Focus | Transit | Tourneo.

Ford EcoBoost Timing Kit
t Click picture for more information

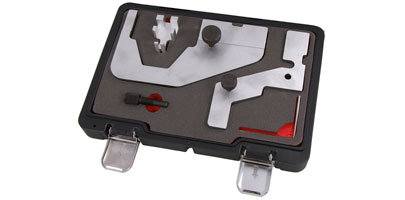

Ford EcoBoost Timing Kit

CT4434

Timing Tool Set - Ford

Ford Timing Tool Set
For the 2.0L EcoBoost SCTi and Ti-VCT engines
in Focus / Galaxy / Mondeo / S-Max models.

Ford EcoBoost Timing Kit
t Click picture for more information

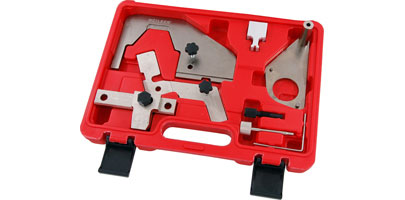

Ford EcoBoost Timing Kit

CT4648

Timing Tool Set - Ford

Ford Engine Timing Tool Set
2.0L EcoBoost SCTi / Ti-VCT Petrol Engine
Models : Focus / 2011 | Galaxy / 2010 | Mondeo / 2010 | S-Max / 2010
Engine Codes : TNWA / TNWB / TNBA / TPWA / MGDA / XQDA

Ford EcoBoost Timing Kit
t Click picture for more information

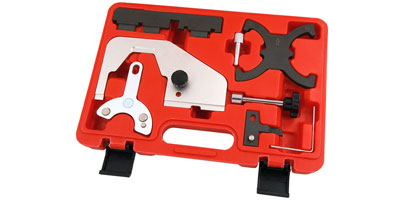

Volvo Cam/Crankshaft Alignment Tool Set

CT4646

Timing Tool Set - Volvo

Timing Tool Set - Volvo
V4 1.6L / 2.0L GTDI T4 / T5 Engines
To adjust and fix angle of camshaft and crankshaft.
Applicable : VOLVO V4 1.6L / 2.0L T4 / T5 engine.
Models : S60 | S80 | V40 | V60 | V70 | XC60
Also for Ford cars with 1.6 SCTi / Ti-VCT Eco boost engines.

Volvo Cam/Crankshaft Alignment Tool Set
t Click picture for more information
