Section 5.5

Carburettors / Fuel Injectors & Fuel Pumps

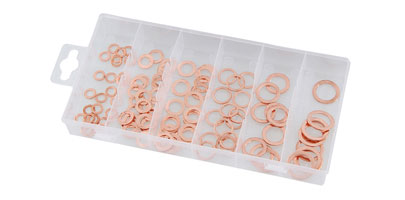

Copper Washer Assortment Box

CT2922

Assorted Pack - Copper Washers

110pc Copper Washer Set
Copper Gaskets
30 x 1/4in.
25 x 5/16in.
20 x 3/8in.
15 x 7/16in.
10 x 1/2in.
10x 5/8in.

Copper Washer Assortment Box
t Click picture for more information

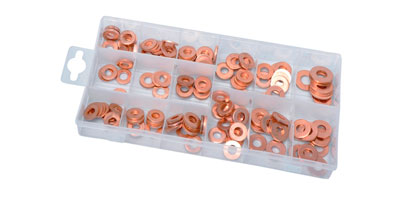

Copper Injector Seal Rings

CT3162

Assorted Pack - Copper Washers

150pc Fuel Injector Copper Seal Ring Set
For Diesel injector ports ( CDI ).
Sizes : 13.8 - 20.0mm External Diameter
Sizes : 7.3 - 9.4mm Internal Diameter
Depth : 1.3 - 3.0mm
10 of each size

Copper Injector Seal Rings
t Click picture for more information

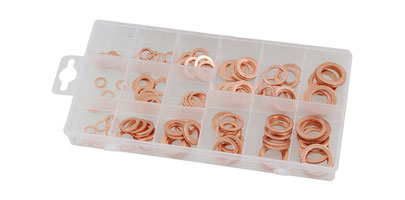

Copper Washer Assortment Box

CT4093

Assorted Pack - Copper Washers

150pc Oil Drain Plug Washer Set
Copper O-Rings
Sizes : 10 - 24mm External Diameter
Sizes : 5.0 - 17.5mm Internal Diameter
Depth : 1.0 - 2.0mm
10 of each size.

Copper Washer Assortment Box
t Click picture for more information

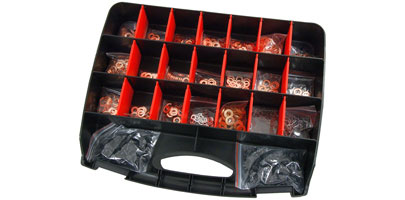

Copper Injector Seal Rings

CT4675

Assorted Pack - Copper Washers

Injector Copper Ring Set
Suitable for:
Deutz / Fiat / Ford / Iveco / Kia / Land Rover
MAN / Mazda / Mercedes / Renault / Universal

Copper Injector Seal Rings
t Click picture for more information
10mm Injector Hex Bit Socket

CT4240

Hex Bit - 10mm 1/2in.Dr

10mm Hex Bit
with 1/2in.Dr Socket
Tamper Proof for Fuel Injectors

10mm Injector Hex Bit Socket
t Click picture for more information

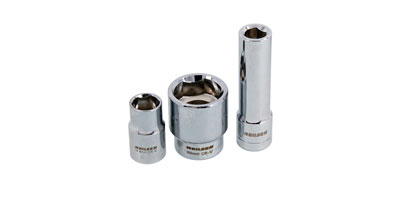

Bosch VE Pump Sockets

CT4128

Socket Set - 3pc

3pc Socket Set with Unique Profile
for Bosch Diesel Injection Distributor Pumps
1/2in.Dr / Chrome Vanadium

Bosch VE Pump Sockets
t Click picture for more information

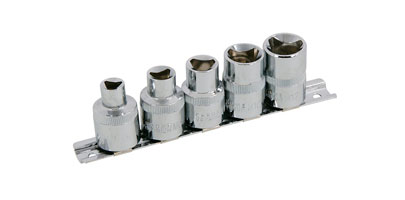

Bosch VE Pump Sockets

CT4028

Tri-Point Socket Set - 1/2in.Dr

Tri-Point Socket Set - 5pc 1/2in.Dr
For Triangular Profile Tamperproof Fixings
Sizes : 8 | 10 | 12 | 15 | 16.5mm
For Injection Pumps and Bosch Injectors
Applicable to VAG vehicles with TDi engines

Bosch VE Pump Sockets
t Click picture for more information

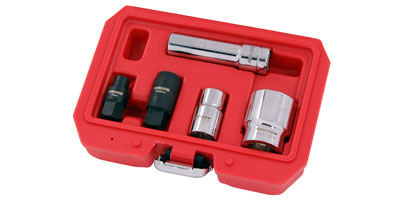

Bosch VE Pump Sockets

CT4130

Socket Set - 5pc

5pc Socket Set with unique profile for
Bosch Diesel Injection Distributor Pumps
7.0mm 1/4in.Dr / 15mm Hex
12.6mm 1/4in.Dr / 1/2in. Sq
14.4mm 1/2in.Dr
26.0mm 1/2in.Dr
12.4mm oval socket 1/2in.Dr

Bosch VE Pump Sockets
t Click picture for more information

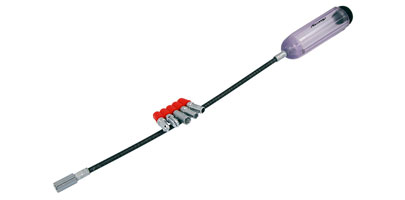

Flexi-Shaft Carburettor Adjuster

CT1329

Carburettor Adjuster with Flexi-Shaft

Flexi-Shaft Carburettor Adjuster
280mm flexible shaft reaches into confined areas.
5 quick change adapters for multiple applications.
2mm ( 3/32 ) and 2.5mm ( 1/8 ) Hex Bits
4.5 mm and 1/4in. Hex sockets.
and Double D Socket.
Applicable to most GM vehicles and
1.7 to 2.2L Chrysler 1978 onwards

Flexi-Shaft Carburettor Adjuster
t Click picture for more information

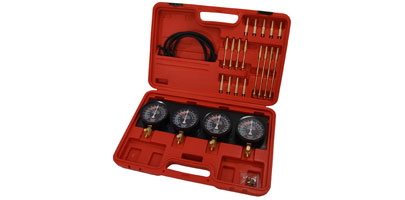

Carburretor Synchronize Tool Kit

CT3742

Carburettor Synchronize Tool Kit

Vacuum Carburettor Synchronizer Kit
To synchronise the values of up to 4 carburettors
Features a bank of 4 gauges with lockable valves
80mm gauges with fixed plate and 4 x 750mm rubber hoses.
Long and short carburettor adaptors and connectors.

Carburretor Synchronize Tool Kit
t Click picture for more information

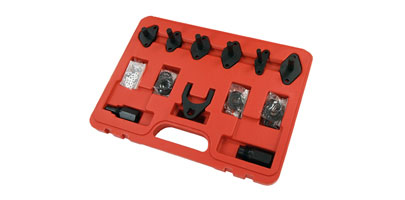

False Actuator Kit

CT3689

False Actuator Kit

False Actuator Kit
for Delphi Sealed Rail Kits to extend
testing on common rail diesel engines.
The false actuators trick the common rail pump
into producing the maximum pump pressure which
confirms the pump is able to work under maximum load.
For Bosch | Delphi | Denso | Siemens

False Actuator Kit
t Click picture for more information

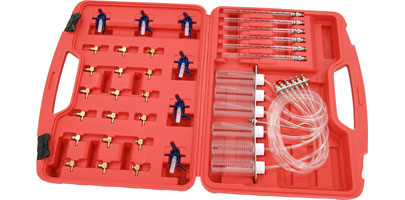

Flow Meter and Adaptor Set

CT2236

Flow Meter and Adaptor Set

Flow Meter and Adaptor Set for Common Rail Diesels
Measurers the amount of fuel injectors return to the deposit tank.
For use on up to 6 Injectors.
Adaptors for Bosch / Siemens / Denso / Delphi injectors

Flow Meter and Adaptor Set
t Click picture for more information

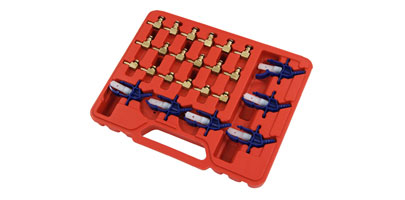

Flow Meter Adaptor Set

CT3682

Flow Meter Adaptor Set - 24pc

24pc Flow Meter Adaptor Set
For common rail diesel engines.
To be used on injector nozzles together with common rail diagnosis kit.
Adaptors fit most systems such as Siemens . Bosch . Denso etc.

Flow Meter Adaptor Set
t Click picture for more information

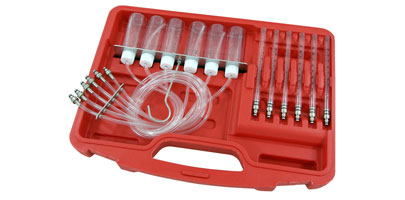

Diesel Injector Flow Meter

CT3756

Diesel Injector Flow Meter

Flow Meter for Common Rail Diesel Engines
Measures the return flow of diesel injectors.
Allows simultaneous measurement of the pressure
in 6 injectors and identifies any damaged injectors.
For Bosch | Delphi | Denso | Siemens systems.
Graduated reservoir bottles : 105ml capacity
Fuel-resistant transparent hoses : 650mm long.
Graduated manometer tubes : 95ml capacity
With bottle rack hanger for engine bay.

Diesel Injector Flow Meter
t Click picture for more information

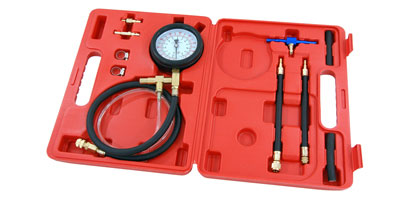

Fuel Injection Pressure Test Kit

CT3376

Fuel Injection Pressure Test Kit

Fuel Injection Pressure Test Kit
For Schroder test-port fuel injection systems.
Quick coupling system with safety valve.
Dual scale gauge - 0-145psi and 0-1000kpa
with hanging hook and protective bumper.

Fuel Injection Pressure Test Kit
t Click picture for more information

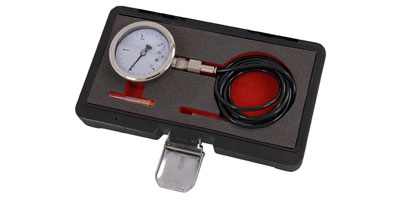

Turbo Pressure Gauge - 3 Bar

CT4441

Turbo Pressure Gauge - 3 Bar

Turbo Pressure Gauge
Fuel Injection Pressure Gauge
Suitable for all vehicles.
Supplied with nut and 2M PU tube.
Pressure: 1 to 3 Bar

Turbo Pressure Gauge - 3 Bar
t Click picture for more information

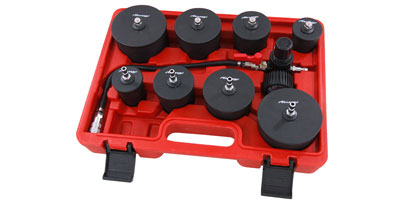

Turbo System Leak Tester Kit

CT5646

Turbo System Leak Tester Set - 9pc

Turbo System Leak Tester
Used in conjunction with an air line to show the presence of leaks.
Kit supplied with 8 stepped adaptors to fit most hose sizes.
Features a pressure gauge with shut-off valve and pressure release valve.
Can also be used on cooling systems.

Turbo System Leak Tester Kit
t Click picture for more information

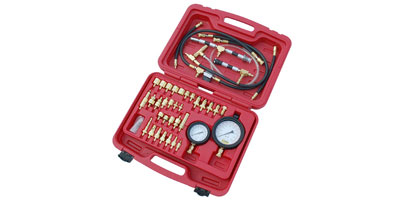

Fuel Injection Test Set

CT2235

Fuel Injection Test Set

41pc Fuel Injection Test Set
High Pressure Gauge with Dual Readings of 0-145psi and 0-1000kpa
Low Pressure Gauge with 0-15psi or 0-100kpa
Adaptors Feature Quick Couplings for Easy Connection

Fuel Injection Test Set
t Click picture for more information

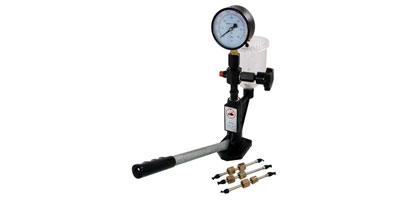

Diesel Injector Nozzle Tester

CT0590

Diesel Injector Nozzle Tester

Diesel Injector Nozzle Tester
Used to adjust and calibrate the injection nozzle opening pressure
and to carry out leakage / spray pattern and chatter characteristic tests.
For nozzle sizes - R | S | T
With 100mm Pressure Gauge : 0-60 Mpa / 0-600 bar
and supplied with 1 - M12 pipe and 2 - M14 pipes.

Diesel Injector Nozzle Tester
t Click picture for more information

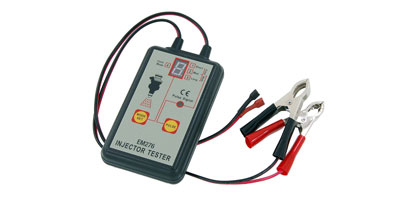

Fuel Injector Tester

CT3422

Fuel Injector Tester - 12V

Fuel Injector Tester
For Injector fuel delivery problems on
petrol vehicles with electronic fuel injection.
Powered by the 12 Volt vehicle battery.
Large LED display / 4 Pulse Modes
Detects faults such as clogged or leaking fuel injectors
sluggish or sticky fuel injectors and wiring harness faults.

Fuel Injector Tester
t Click picture for more information

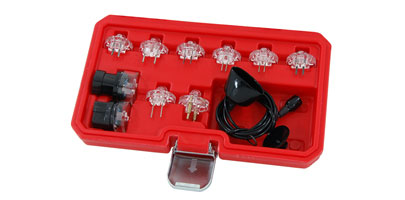

Noid Light Set

CT1951

Noid Light Set - 11pc

11pc Electronic Fuel Injection Test Light Set
Crucial for electronic fuel injection systems
Systems covered :
TBI - Ford | GM | Geo
PFI - Bosch | GM
SCPI - GM / Multec 2 / 1987
GM 1982 equipped vehicles.

Noid Light Set
t Click picture for more information
Turbo Charger Wrench

CT4010

Turbo Charger Wrench - 12mm VAG

VW / Audi Turbo Charger Wrench
12mm Double Hex - 12pt | 3/8in.Dr
Special wrench for use on diesel engines with
Turbo Chargers fitted to VW and Audi vehicles.
This offset wrench reaches underneath the turbo charger
to assemble or disassemble the 12mm bolts.
Applicable to VAG V6 TDI Diesel Engines

Turbo Charger Wrench
t Click picture for more information
VAG Turbo Actuator Adjustment Set

CT4500

Turbo Actuator Adjustment Set - 2pc

VAG Turbo Actuator Adjustment Set
1/4in.Dr Socket - 10mm x 50mm Long.
12pt Spanner - 10 / 12mm x 143mm long.
Unique spanner and split socket for removing
fitting and adjusting the turbo pressure capsule
and charge pressure actuator on VAG vehicles.

VAG Turbo Actuator Adjustment Set
t Click picture for more information
14mm Diesel Injector Pipe Wrench

CT4261

Diesel Injector Wrench - 14mm

14mm Open End Ring Wrench
for Diesel Injector Pipes
Ideal for injectors that have difficult access
Twin hexagon profile suitable for most diesel engines
Chrome Molybdenum

14mm Diesel Injector Pipe Wrench
t Click picture for more information
17mm Diesel Injector Pipe Wrench

CT4029

Diesel Injector Wrench - 17mm

17mm Open End Ring Wrench
for Diesel Injector Pipes
Ideal for injectors that have difficult access
Twin hexagon profile suitable for most diesel engines
Chrome Molybdenum

17mm Diesel Injector Pipe Wrench
t Click picture for more information

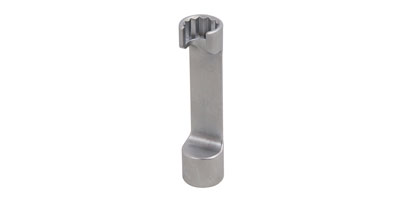

14mm Injector Line Socket

CT4498

Fuel Injector Line Socket - 14mm

Injection Line Flare Nut Socket
14mm - 3/8in.Dr
For Mercedes Benz Sprinter
Can be used on any 14mm flare nut
Maximum Torque : 25Nm
Chrome-Molybdenum

14mm Injector Line Socket
t Click picture for more information

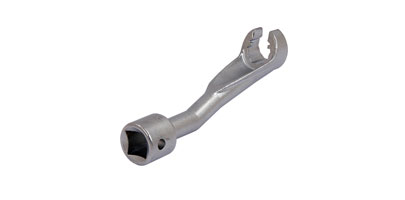

14mm Injector Line Socket

CT3956

Fuel Injector Line Socket - 14mm

14mm Fuel Injection Line Socket - 1/2in.Dr
120mm long Open 12 point socket for screwed in Injection Lines
found on Diesel Common Rail Injection Systems
For BMW and VW Diesel Engines.

14mm Injector Line Socket
t Click picture for more information

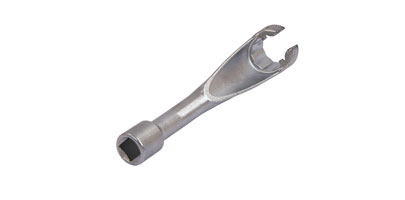

17mm Injector Line Socket

CT3955

Fuel Injector Line Socket - 17mm

17mm Fuel Injection Line Socket - 3/8in.Dr
120mm Long Open 12 point socket for screwed in Injection Lines
found on Diesel Common Rail Injection Systems
For BMW and Opel 2.5TD Diesel Engines

17mm Injector Line Socket
t Click picture for more information

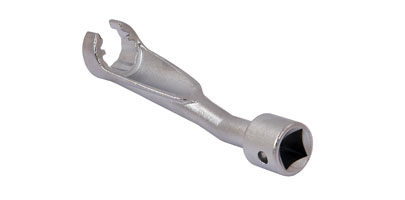

17mm Injector Line Socket

CT3957

Fuel Injector Line Socket - 17mm

17mm Fuel Injection Line Socket - 1/2in.Dr
120mm long Open 12 point socket for screwed in Injection Lines
found on Diesel Common Rail Injection Systems
For Mercedes vehicles

17mm Injector Line Socket
t Click picture for more information

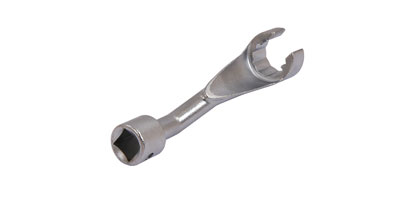

19mm Injector Line Socket

CT3958

Fuel Injector Line Socket - 19mm

19mm Fuel Injection Line Socket - 1/2in.Dr
125mm long Open 12 point socket for screwed in Injection Lines
found on Diesel Common Rail Injection Systems
For Mercedes vehicles

19mm Injector Line Socket
t Click picture for more information

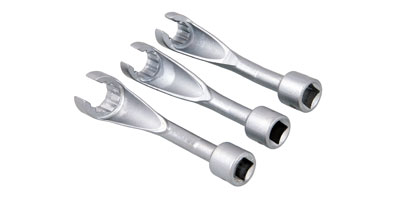

Injector Line Socket Set

CT4637

Fuel Injector Line Socket Set - 3pc

3pc Injection Line Socket Set
1/2in.Dr / 12 Point / 125mm Deep
For the removal and re-connection of Diesel Fuel Injector Line fittings.
14mm for BMW | VW vehicles.
17 and 19mm for Mercedes vehicles.

Injector Line Socket Set
t Click picture for more information

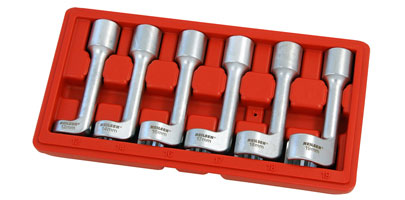

Injector Line Socket Set

CT3954

Fuel Injector Line Socket Set - 6pc

6pc Diesel Injector Line Socket Set - 1/2in.Dr
Sizes : 12 | 14 | 16 | 17 | 18 | 19mm x 100mm Deep
For dismantling injectors on most diesel engines.

Injector Line Socket Set
t Click picture for more information

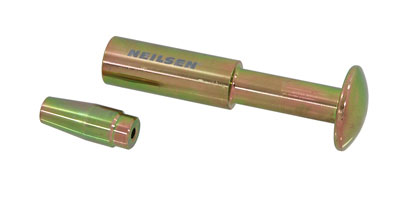

Injector Tube Seal Installation Tool

CT5735

Fuel Injector Tube Seal Installation Tool

Fuel Injector Tube Seal Installation Tool
Designed to quickly and easily replace the injector tube seals
found on DV6 1.6 16V Diesel Engines found in -
Fiat / Ford / Mazda / PSA / Suzuki and Volvo vehicles.

Injector Tube Seal Installation Tool
t Click picture for more information
Ford Duratorq Injector Socket

CT4511

Fuel Injector Socket - 21mm

21mm Ford Duratorq Diesel Injector Socket
1/2in.Dr with Cut Away
For use on the Ford Duratorq Diesel Engine
OEM Code : 303-677

Ford Duratorq Injector Socket
t Click picture for more information
Ford Duratorq Injector Alignment Tool

CT3735

Fuel Injector Alignment Tool - Ford

Ford Duratorq Diesel Injector Alignment Tool
For Ford Duratorq Diesel Engines
2.0 / 2.2 / 2.4 DI / TDCI / TDDI fitted to -
Mondeo 2000 - 2007
Transit 2000 - 2006
Jaguar X type 400

Ford Duratorq Injector Alignment Tool
t Click picture for more information
Diesel Injector Alignment Tool | CT3735

CA5020023

Fuel Injector Alignment Tool - Ford

Ford Duratorq Injector Alignment Tool
Alignment Bar and Adjustable Clamp
to hold the injectors in place and align them
with the fuel lines while the injectors are secure.

Diesel Injector Alignment Tool | CT3735
t Click picture for more information
Diesel HGV Injector Socket

CT3447

Fuel Injector Socket - Diesel HGV

HGV Diesel Fuel Injector Nozzle Socket
For the removal of diesel injector nozzles on
MAN / Mercedes and Sania commercial vehicles
Use with a 22mm Spanner

Diesel HGV Injector Socket
t Click picture for more information
Diesel HGV Injector Socket

CT4402

Fuel Injector Socket - Diesel HGV

Diesel Injection Valve Socket
For MAN and Mercedes Trucks
4 Tooth Socket x 72mm Deep
22mm - inside diameter
28mm - outside diameter
Applicable to : MAN 422 / 403
Mercedes Benz and Scania Trucks.

Diesel HGV Injector Socket
t Click picture for more information
Fuel Injector Top Cap Socket Set

CT4629

Fuel Injector Socket Set - 4pc

4pc Injector Socket Set 1/2in.Dr
Sizes: 25 | 27 | 29 | 30mm
For removing the top cap and connectors on diesel fuel injectors.
Deep sockets with wide cut-out for the most popular injectors in modern vehicles
Chrome Vanadium

Fuel Injector Top Cap Socket Set
t Click picture for more information
Diesel Injector Socket Set

CT0358

Fuel Injector Socket Set - 4pc

4pc Diesel Truck Injector Socket Set
70mm 4 Teeth with M14 x 1.5mm receiver thread
72mm 4 Teeth
120mm 4 Teeth
120mm 3 Teeth for injectors with electrodes

Diesel Injector Socket Set
t Click picture for more information
Diesel Injector Socket Set

CT3762

Fuel Injector Socket Set - 4pc

4pc Diesel Truck Injector Socket Set
for working on nozzle holders
1/2in. Dr Socket - 72mm long with 4 teeth
2 Sockets with 32mm outer hexagon and 4 teeth
1/2in.Dr Socket - 120mm long with 3 teeth

Diesel Injector Socket Set
t Click picture for more information
Fuel Injector Socket Set

CT3542

Fuel Injector Socket Set - 7pc

1/2in. and 3/4in. Drive
Sizes - 25 / 27 / 28 / 29 / 30mm
Suitable for most Injectors with Bosch and Siemens nozzles
Suitable for Citroen / Peugeot vehicles

Fuel Injector Socket Set
t Click picture for more information
Fuel Injector / Glow Plug Socket Set - 9pc

CT4482

Fuel Injector / Glow Plug Socket Set - 9pc

9pc Diesel Injector and Glow Plug Socket Set
1/2in.Dr Diesel Injector Sockets :
21mm x 90mm |
22mm x 78mm | 22mm x 110mm
27mm x 78mm |
28mm x 78mm | 28mm x 83mm
3/8in.Dr Glow Plug Sockets :
8 | 10 | 12mm x 158mm long with Universal Joint.

Fuel Injector / Glow Plug Socket Set - 9pc
t Click picture for more information
Diesel Injector Removal Set

CT4486

Fuel Injector Removal Set - 6pc

6pc Diesel Injector Removal Set
Adaptor sizes :
M20 x 1.5 inner thread to M14 x 1.0 inner thread
M20 x 1.5 inner thread to M17 x 1.0 outer thread
M20 x 1.5 inner thread to M20 x 1.0 outer thread
M20 x 1.5 inner thread to M25 x 1.0 outer thread
M20 x 1.5 inner thread to M27 x 1.0 outer thread
10mm Tamperproof Hex Bit / 1/2in.Dr Socket
For removing Bosch / Denso / Siemens and Delphi injectors.

Diesel Injector Removal Set
t Click picture for more information
Fuel Injector Extractor Set

CT3528

Fuel Injector Extractor Set - 3pc

3pc Fuel Injector Extractor Set
Suitable for Mercedes CDI engines
Impact Extractor - 1.85kg / 470mm
Injector Claw
Injector Adaptor

Fuel Injector Extractor Set
t Click picture for more information
Truck Injector Extractor Set

CT5633

Fuel Injector Extractor Set - 6pc

6pc Diesel Injector Extractor Set
Fuel injector puller for new generation trucks.
Applicable to trucks with injector-pump systems
or with traditional truck injectors on -
Volvo / Scania / Mercedes / MAN / Renault / IVECO.
With Socket for Delphi injectors / Injector Hook / Extension and Upper handle
Body-tamper / Universal joint / M18 x 1.5 nut.

Truck Injector Extractor Set
t Click picture for more information
Injector Extractor Set

CT3189

Fuel Injector Extractor Set - 9pc

9pc Injector Extractor Set
For removing seized injectors without dismounting the cylinder head.
Slide Hammer : 350mm / 1.75kg
Adaptor / Puller : M12 x 1.75P
Adaptor : M17 x 1.0
Adaptor : M27 x 1.0 for bosch injector nozzle
Suitable for Mercedes and other vehicles.

Injector Extractor Set
t Click picture for more information
Injector Extractor Set with Slide Hammer

CT3154

Fuel Injection Puller Set - 14pc

14pc Injection Puller Set
For the reliable removal of Bosch / Delphi / Deso and Siemens diesel Injectors
1/2in.Dr Injector Sockets - 25 / 27 / 29 / 30mm
7 Injector Adaptors and Slide Hammer

Injector Extractor Set with Slide Hammer
t Click picture for more information
VAG Fuel Injector Service Kit

CT3506

Fuel Injector Service Kit - VAG

17pc VAG Fuel Injector Service Kit
for the removal and installation of petrol injectors on VAG vehicles.
Applicable to : 1.4 | 1.6 | 1.8 | 2.0 | 2.7V6 | 3.2V6 | 3.6V6 and 4.2V8 FSI engines.

VAG Fuel Injector Service Kit
t Click picture for more information
VAG Fuel Injector Service Kit

CT5669

Fuel Injector Service Kit - VAG

15pc VAG Fuel Injector Service Kit
Suitable for VW / Audi / Seat / Skoda FSI injectors
with Direct Injection or Pump-Injector engines.
Slide hammer / Puller / Puller Claw for dismantling FSI injectors
Cone an Calibration tools for mounting the combustion chamber rings.
Built-in pin for mounting the FSI injectors
Extractor for dismantling pump-injector units

VAG Fuel Injector Service Kit
t Click picture for more information



Next Last

Product Search

Search Icon
Section 1 Icon Section 2 Icon Section 3 Icon Section 4 Icon Section 5 Icon Section 6 Icon Section 7 Icon Section 8 Icon Section 9 Icon Section 10 Icon

Cannon Tools Limited   •  20 Station Road,  Rowley Regis,  West Midlands,  B65 0JU,  United Kingdom

 T +44 (0) 121 561 6760
