Section 5.38

Bushing Tools

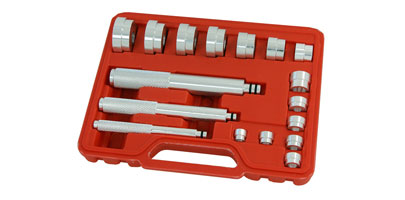

Bearing Bush Driver Set

CT2368

Bearing and Bushing Driver Set - 17pc

17pc Bearing and Bushing Driver Set
For Bearings / Vibration Isolators / Silent Blocks
3 Driver Handles : 113mm | 140mm | 162mm
14 adaptors : ID 10 - 38mm | OD 12 - 42mm
Allows the user to insert wheel bearing race and seals
easily without damaging the race and axle housing.
Fits most standard bushing / wheel bearings.
Simply turn discs over to drive seals.

Bearing Bush Driver Set
t Click picture for more information

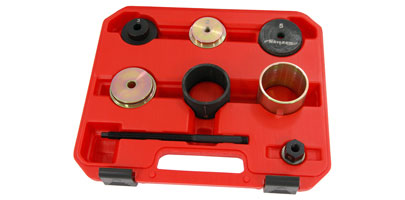

Differential Bushing Service Kit

CT6434

Bushing Service Kit - BMW

BMW Differential Front Bushing Tool Set
For the removal / installation of the front differential bushing
on BMW 5 / 6 / 7 series vehicles -
F01 | F02 | F04 | F06 | F07 | F10 | F11 | F12 | F13 | F18
With Disassembly Plates and Sleeve
Mounting Plate and Mounting Sleeve
Spindle / Spindle Nut.
OEM Code : 330020

Differential Bushing Service Kit
t Click picture for more information

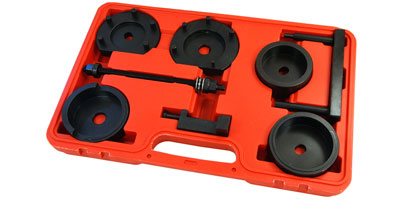

Transmission Bushing Service Kit - BMW

CT4871

Bushing Service Kit - BMW

BMW Transmission Rubber Mount Extractor Set
For X3 / X5 / X6 transmission rubber bushings.
BMW : E53 | E60 | E61 | E67
E70 | E71 | E83
E90 | E91 | E92
X-Drive models.
Covering : 2000 - 2013

Transmission Bushing Service Kit - BMW
t Click picture for more information

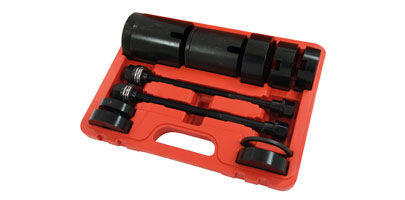

Bushing Service Kit - BMW

CT3575

Bushing Service Kit - BMW

BMW Bushing Service Kit
For removing and installing the Screw Pivot Bushing Isolator.
Applicable to BMW E31 / E32 / E34 / E38 / E39 / E53 / E60 / E65 / E66

Bushing Service Kit - BMW
t Click picture for more information

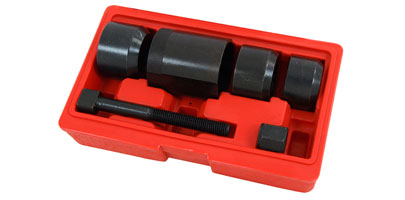

BMW Rear Bushings Service Kit

CT0587

Bushing Service Kit - BMW

BMW Rear Axle Bushings Service Kit
For the Removal and Replacement
of Rear Axle Bushings / Metallic Vibration Isolators.
Applicable to : BMW E38 - E70 vehicles

BMW Rear Bushings Service Kit
t Click picture for more information
Bushing Service Kit

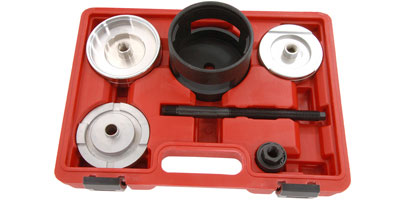

CT3875

Bushing Service Kit - BMW

Rear Subframe Bush Tool - BMW X5
Suitable for the removal / installation of the rear axle carrier bushings.
Can be used in-situ without removing the rear subframe assembly from the vehicle.
Use with 24mm spanner only.
Applicable to BMW ESS X5 / 99-07.

Bushing Service Kit
t Click picture for more information
BMW Rear Bushing Service Kit

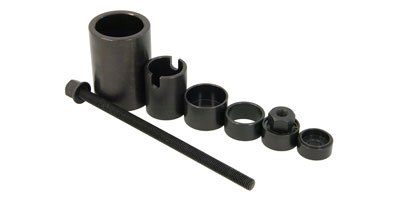

CT5398

Bushing Service Kit - BMW

Rear Hub Bushing Tool Kit for BMW 1 / 3 Series
For extracting and installing the rear outer bushings
fitted to the camber and trailing arm on BMW 1 and 3 series.
With Split bushing alignment sleeve and insertions Cups
Knuckle joint extractor / M12 : Nut / Bearing assembly / Force Nut.
Applicable to BMW Series 1 and 3 / 2004 to 2012

BMW Rear Bushing Service Kit
t Click picture for more information

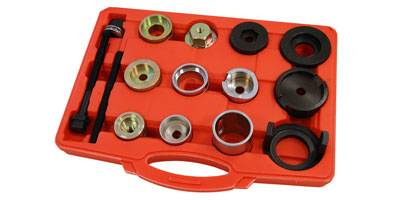

BMW Rear Bushing Installation Kit

CT3876

Bushing Service Kit - BMW

BMW Rear Axle Bushing Remover and Installation Kit
For removing or installing the rubber mounted ball joint
in the rear axle trailing arm without
removing the rear carrier assembly.
Suitable for use on various BMW models : E36 / E46

BMW Rear Bushing Installation Kit
t Click picture for more information

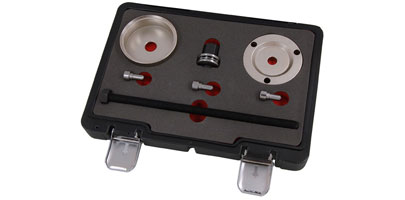

Bushing Service Kit - Fiat

CT4433

Bushing Service Kit - Fiat

Fiat Rear Bushings Service Kit
For the installation of rubber bushings /
vibration isolators on rear axles.
Applicable to :
Fiat Stilo / 01 - 07
Fiat Bravo / 07
Lancia Delta / 08

Bushing Service Kit - Fiat
t Click picture for more information

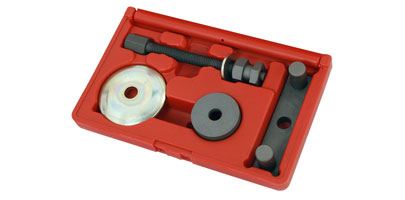

Rear Sub Frame Bush Kit

CT2284

Bushing Service Kit - Ford

Rear Sub Frame Bushing Isolator Kit for Ford Mondeo

Rear Sub Frame Bush Kit
t Click picture for more information
Bushing Service Kit

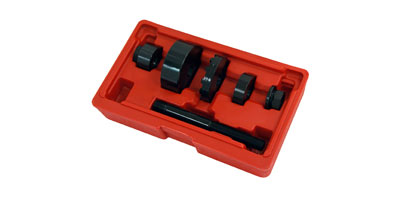

CT3515

Bushing Service Kit - Ford

Ford Bushing Service Kit
Suitable for the rear mounted Bushing Isolators.
No need to remove the trailing link assembly.
Applicable to Ford Mondeo 2001 onwards

Bushing Service Kit
t Click picture for more information

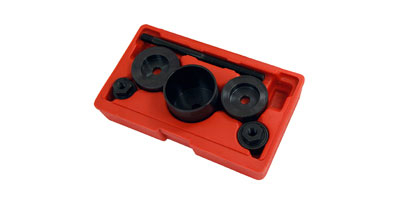

Bushing Service Kit

CT3514

Bushing Service Kit - Ford

Ford Bushing Service Kit
Suitable for the rear mounted Bushing Isolators.
No need to remove the trailing link assembly.
Applicable to Ford Ka and Fiesta vehicles.

Bushing Service Kit
t Click picture for more information
Ford Trailing Arm Bushing Tool

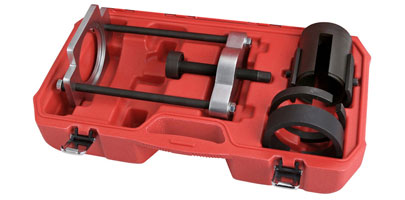

CT5202

Bushing Service Kit - Ford

Trailing Arm Bushing Tool
for Ford Mondeo Mk4 / S-Max / Galaxy 2006 onwards
For servicing the rear trailing arm mounting bushings on Ford vehicles
Also suitable for some Volvo vehicles that share the same Ford platform.
Can be used in-situ without removing the arm from the vehicle.
Applicable to :
Galaxy 06 on | Mondeo Mk IV 07 on | S-Max 06 on |
Volvo : S60 | S80 | XC60 | V70 | XC70 06 on.

Ford Trailing Arm Bushing Tool
t Click picture for more information

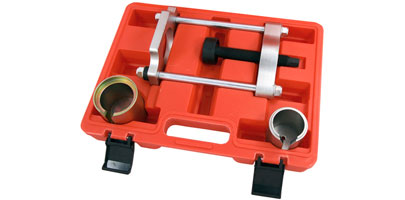

Ford Focus Bushing Service Kit

CT3894

Bushing Service Kit - Ford

Rear Bushing Tool - Ford Focus Mk1
For servicing the rear subframe bushings
No need to remove subframe from vehicle.
Applicable to : Ford Focus MK1 1998-2004.

Ford Focus Bushing Service Kit
t Click picture for more information

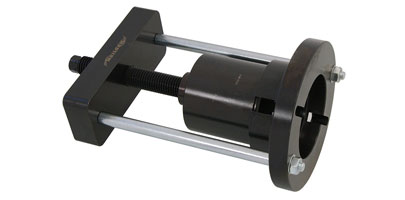

Ford Trailing Arm Bushing Tool

CT5389

Bushing Service Kit - Ford / Volvo

Trailing Arm Bushing Removal Tool
For servicing the trailing arm bushing on Ford / Volvo vehicles
in-situ without the need to disconnect the brake lines
or the removal of the bushing positioning bolts or mounting plates.
Applicable to Ford Mondeo / Galaxy / S-Max and
Volvo S60 / 80 | XC60 / 70 | V60 / 70 models

Ford Trailing Arm Bushing Tool
t Click picture for more information

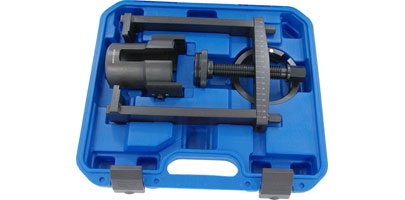

Ford Trailing Arm Bushing Tool

CT6443

Bushing Service Kit - Ford / Volvo

Bushing Service Tool - Ford / Volvo - Rear
For servicing the silent bearings in the trailing arm of
the rear axle with no disassembly of the rear axle necessary.
Applicable to :
Ford : Mondeo / Mondeo Turnier / S-Max / Galaxy
Volvo : S60 / S80 / V70 / XC60 / XC70

Ford Trailing Arm Bushing Tool
t Click picture for more information

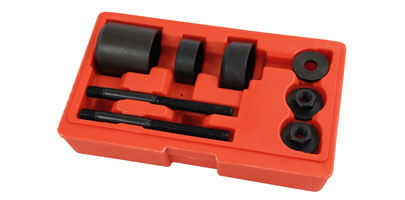

Vauxhall / Opel Suspension Bushing Removal Tool

CT2909

Bushing Service Kit - Vauxhall / Opel

Rear Suspension Bushing Isolator Removal Tool
for Vauxhall / Opel
For Upper and Lower Suspension Bushings

Vauxhall / Opel Suspension Bushing Removal Tool
t Click picture for more information

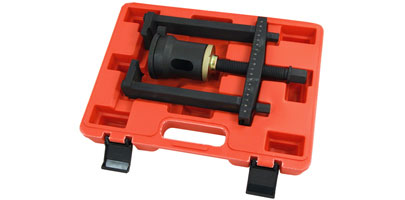

Rear Bushing Service Kit - Honda

CT4862

Bushing Service Kit - Honda

Honda Rear Trailing Arm Bushing Tool
For the replacement of the Rear Trailing Arm Bushing Isolator
Hook design to securely mount the tool on to the trailing arm assembly.
Provides maintenance to the trailing arm assembly without damage
to the ABS sensor cable and other parts close to the bushing.
Applicable to : Honda CR-V 1996/9 - 2002/8. K6. K8

Rear Bushing Service Kit - Honda
t Click picture for more information

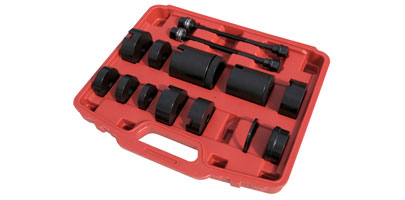

Bushing Service Kit

CT3418

Bushing Service Kit - Mercedes

Mercedes Bushing Service Kit
For removing and installing steering and suspension Bushing Isolator.
Applicable to BMW and Mercedes Benz

Bushing Service Kit
t Click picture for more information
Bushing Service Kit - Mercedes

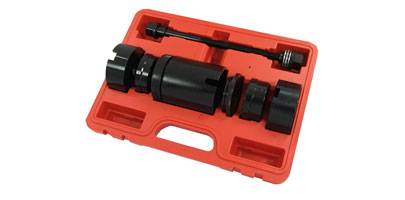

CT3576

Bushing Service Kit - Mercedes

Mercedes Bushing Service Kit
For removing and installing Screw Pivot Bushing Isolator.
Applicable to Mercedes Benz W220 / W211 / W203

Bushing Service Kit - Mercedes
t Click picture for more information

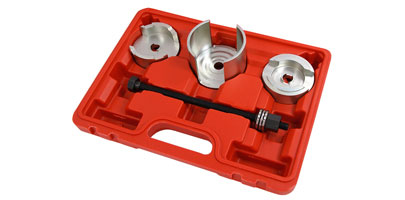

Renault Rear Subframe Bushings Kit

CT3760

Bushing Service Kit - Renault

Renault Laguna II Rear Subframe Bushings Kit
Remove and install front mounted bushings on the rear subframe.
Can be used in-situ no need to remove the subframe from the vehicle.

Renault Rear Subframe Bushings Kit
t Click picture for more information

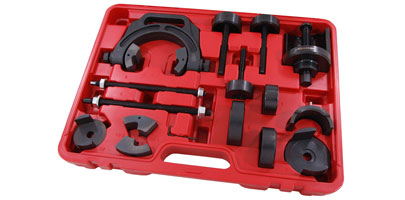

Toyota Suspension Bushing Tool Set

CT5516

Bushing Service Kit - Toyota

Toyota Rear Axle Suspension Bushing Tool Set
For removing / installing rear suspension bushings on many Toyota vehicles.
Applicable to : Toyota Avensis / Corolla / Previa / Yaris / Camry / Picnic.

Toyota Suspension Bushing Tool Set
t Click picture for more information
VW T5 Bushing Service Tool Set

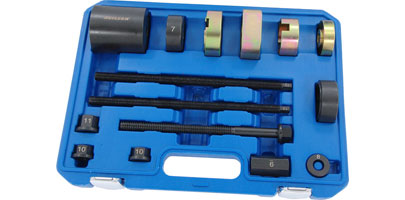

CT6436

Bushing Service Kit - VAG

VW T5 Front Axle Control Arm Bush Tool Set
For removal and installation of the Front and
Rear bushings on the front axle control arm.
Suitable for VW T5 / 2005 - 2011
OEM Bushing Code : 7H0 407 182 | 7H0 407 183
and aftermarket direct equivalents.

VW T5 Bushing Service Tool Set
t Click picture for more information

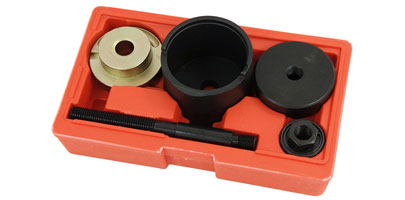

Bushing Service Kit

CT3517

Bushing Service Kit - VAG

VAG Bushing Service Kit
Suitable for the Bushing Isolators on the front lower wishbone.
No need to remove the aluminium housing.
Applicable to Seat / Skoda and VW vehicles.
Use with a 24mm Spanner.

Bushing Service Kit
t Click picture for more information

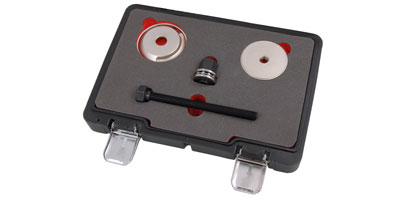

Bushing Service Tool - VAG

CT4432

Bushing Service Kit - VAG

VAG Front Bushings Service Kit
For the installation of rubber bushings / silent blocks
or vibration isolators on front axle brackets.
Applicable to :
Audi A2 | VW Polo IV 9N / 02-05
Skoda Fabia 1
Seat Ibiza 6L / 02-06 and Cordoba from 2002
OEM Codes : 3062 | 3253/8 | T10037

Bushing Service Tool - VAG
t Click picture for more information

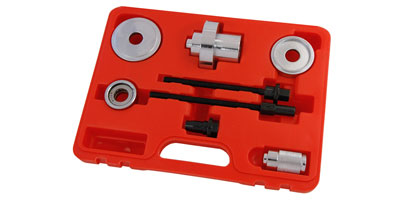

Bushing Service Kit

CT2937

Bushing Service Kit - VAG

Front Bushing Service Kit - VW / Polo
Can be used in-situ without removing assembly from vehicle
Spindle and Shoulder extensions - M10 x 1.25
Shoulder Nut M10 x 1.25
Press Piece and insertion
Centring Ring

Bushing Service Kit
t Click picture for more information

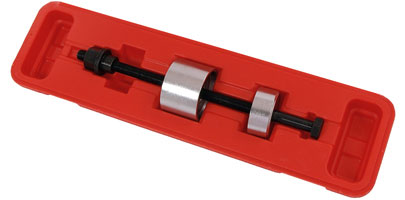

Bushing Service Tool - VAG

CT0501

Bushing Service Tool - VAG

Bushing Service Tool - VAG
For replacing the front suspension bushings
on VW Polo 2002 and later.

Bushing Service Tool - VAG
t Click picture for more information
VAG Rear Suspension Tool

CT2910

Bushing Service Tool - VAG

VW Audi Rear Suspension Tool
For replacing the rear axle mounted bushings
Used in-situ on the vehicle without the need to remove the axle assembly
Allows the bushings to be fitted quickly without damaging vehicle.

VAG Rear Suspension Tool
t Click picture for more information
Bushing Service Kit - VAG

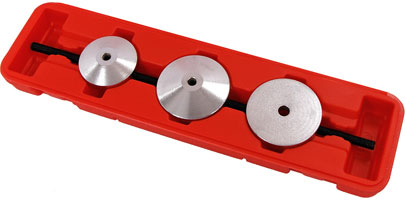

CT0502

Bushing Service Kit - VAG

VW / Audi Bush Remover / Installer
VAG Bushing Service Kit
Suitable for the Bushing Isolators on Audi / VW vehicles.

Bushing Service Kit - VAG
t Click picture for more information
Subframe Locating Pins

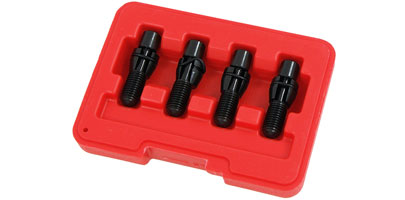

CT4358

Subframe Locating Pin Set - 4pc VAG

4pc VAG Subframe Locating Pin Set
For precise alignment of the subframe to the chassis.
when replacing the vibration isolators / rubber bushings.
Also jobs for which the auxiliary frame / subframe is removed
like removing the clutch

Subframe Locating Pins
t Click picture for more information

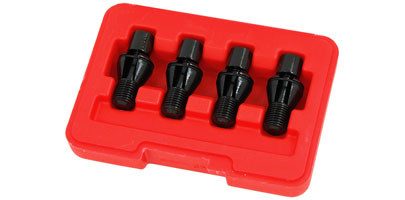

Subframe Locating Pins

CT4359

Subframe Locating Pin Set - 4pc VW T5

4pc VAG Subframe Locating Pin Set
For precisely aligning and mounting the subframe
when replacing the vibration isolators / rubber bushings.
Also jobs for which the auxiliary frame / subframe is removed
Applicable to VW Transporter 2

Subframe Locating Pins
t Click picture for more information
Press Support Ring - Small

CT5919

Press Support Ring - Small

Small Universal Press Support Ring
Outer diameter : 115mm
Inner diameter : 100mm
Height : 160mm
Wall : 7.5mm
Capacity : 10T
for the removal of Wheel Bearings / Bushings and Hubs
Usually working in combination with a hydraulic press.
Great alternative to traditional V blocks and old bearing casings.
Can be used with Universal press support blocks / not included.

Press Support Ring - Small
t Click picture for more information
Press Support Ring - Medium

CT5918

Press Support Ring - Medium

Medium Universal Press Support Ring
Outer diameter : 140mm
Inner diameter : 120mm
Height : 160mm
Wall : 10mm
Capacity : 40T
for the removal of Wheel Bearings / Bushings and Hubs
Usually working in combination with a hydraulic press.
Great alternative to traditional V blocks and old bearing casings.
Can be used with Universal press support blocks / not included.

Press Support Ring - Medium
t Click picture for more information
Press Support Ring - Large

CT5917

Press Support Ring - Large

Large Universal Press Support Ring
Outer diameter : 180mm
Inner diameter : 160mm
Height : 160mm
Wall : 10mm
Capacity : 40T
for the removal of Wheel Bearings / Bushings and Hubs
Usually working in combination with a hydraulic press.
Great alternative to traditional V blocks and old bearing casings.
Can be used with Universal press support blocks / not included.

Press Support Ring - Large
t Click picture for more information
Press Support Ring Set

CT5920

Press Support Ring Set

3pc Universal Press Support Ring Set
Diameters : 115mm / 100mm | H : 160mm | W : 7.5mm | Cap :10T
Diameters : 140mm / 120mm | H: 160mm | W : 10mm | Cap : 40T
Diameters : 180mm / 160mm | H: 160mm | W: 10mm | Cap : 40T
for the removal of Wheel Bearings / Bushings and Hubs
Usually working in combination with a hydraulic press.
Great alternative to traditional V blocks and old bearing casings.
Can be used with Universal press support blocks / not included.

Press Support Ring Set
t Click picture for more information
Master Press and Pull Sleeve Kit

CT3757

Universal Press and Pull Sleeve Kit

30pc Master Press and Pull Sleeve Kit
For the installation of bushes / bearings and seals
For both cars and light commercial vans.
Inside Diameters 34 - 72mm in 2mm steps
Outside Diameters 44 - 82mm in 2mm steps
Pulling Spindles M10 . M12 . M14 . M16.

Master Press and Pull Sleeve Kit
t Click picture for more information
Universal Press and Pull Sleeve Kit

CT3187

Press and Pull Sleeve Set

26pc Universal Press and Pull Sleeve Kit
For the removal and installation of bushes / bearings and seals etc.
22 x Press Sleeves inside diameter from 34-80mm in 2mm steps
Outside diameter from 44-90mm in 2mm steps
M10. M12. M14. M16 Pulling Spindles

Universal Press and Pull Sleeve Kit
t Click picture for more information
Universal Press and Pull Sleeve Kit

CT2934

Press and Pull Sleeve Set

Universal Press and Pull Sleeve Kit
Press Sleeves from 34 - 80mm Diameter in 2mm steps
Outside Diameter from 44 - 90mm in 2mm steps
5 x Pulling Spindles with nuts and thrust bearings
M10 | M12 | M14 M16 | M18

Universal Press and Pull Sleeve Kit
t Click picture for more information
Pulling Spindle

CT2934-1

Pulling Spindle

Replacement M10 Pulling Spindle
for Universal Press and Pull Sleeve Kits CT2934 or CT3187 or CT3757

Pulling Spindle
t Click picture for more information
Pulling Spindle

CT2934-2

Pulling Spindle

Replacement M12 Pulling Spindle
for Universal Press and Pull Sleeve Kits CT2934 or CT3187 or CT3757

Pulling Spindle
t Click picture for more information
Pulling Spindle

CT2934-3

Pulling Spindle

Replacement M14 Pulling Spindle
for Universal Press and Pull Sleeve Kits CT2934 or CT3187 or CT3757

Pulling Spindle
t Click picture for more information
Pulling Spindle

CT2934-4

Pulling Spindle

Replacement M16 Pulling Spindle
for Universal Press and Pull Sleeve Kits CT2934 or CT3187 or CT3757

Pulling Spindle
t Click picture for more information
Pulling Spindle

CT2934-5

Pulling Spindle

Replacement M18 Pulling Spindle
for Universal Press and Pull Sleeve Kit CT2934

Pulling Spindle
t Click picture for more information
Bearing / Bushing and Seal Driver Set

CT3948

Bearing and Bushing Seal Driver Set- 51pc

51pc Bearing and Bushing Seal Master Driver Set
Suitable for mounting bearings | bushings and sealing rings.
220mm knurled handle grip for use with a hammer.
Particularly useful when used with a hydraulic press.
Support Disc - 74 mm |

Bearing / Bushing and Seal Driver Set
t Click picture for more information



Product Search

Search Icon
Section 1 Icon Section 2 Icon Section 3 Icon Section 4 Icon Section 5 Icon Section 6 Icon Section 7 Icon Section 8 Icon Section 9 Icon Section 10 Icon

Cannon Tools Limited   •  20 Station Road,  Rowley Regis,  West Midlands,  B65 0JU,  United Kingdom

 T +44 (0) 121 561 6760
