Section 5.14

General Motors Timing Tools

Diesel Engine Timing Kit

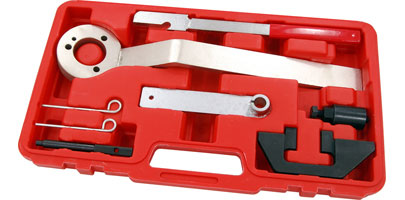

CT3879

Diesel Engine Timing Kit

Diesel Timing Kit
For BMW | JLR | PSA Chain Drive Vehicles
A comprehensive kit designed for
setting camshaft and crankshaft timing position.
Suitable for 1.8 | 2.0 and 2.5 chain drive diesel engines.
With Timing Chain Compressor and Locking pins
Injection Pump Lever and Sprocket Puller
Crankshaft Holding Tool

Diesel Engine Timing Kit
t Click picture for more information
Diesel Timing Tool Set

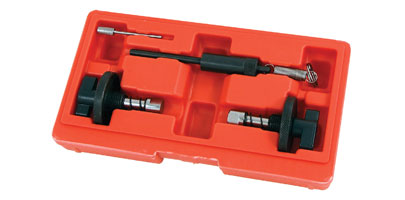

CT3520

Timing Tool Set - Fiat / Ford / PSA

Fiat / PSA Timing Tool Set
Camshaft | Crankshaft Locking and Setting Kit
for Chain Drive 1.3L TDCI | CDTI Diesel Engines.
on Fiat Group | Ford | GM | Suzuki vehicles
Camshaft Alignment tools
Flywheel Alignment Pin
Chain Tensioner Retaining Pin

Diesel Timing Tool Set
t Click picture for more information

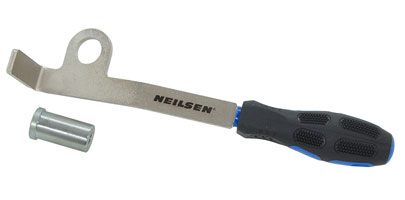

Timing Belt Tensioning Tool

CT5576

Timing Belt Tensioning Tool

Timing Belt Tensioning Tool
Universal Tensioner for a simple way to tension the timing belt
on GM engines fitted to Alfa Romeo / Fiat / Lancia / PSA / Saab and Suzuki.
Applicable to 1.6L / 1.9L / 2.0L / 2.4L diesel vehicles.

Timing Belt Tensioning Tool
t Click picture for more information

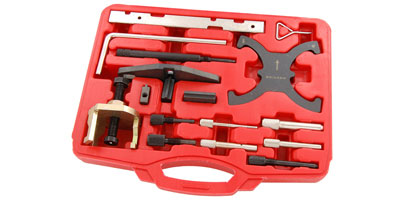

Ford and Mazda Timing Tool Set

CT3429

Timing Tool Set - Ford / Mazda

Ford / Mazda Timing Tool Set
Combination kit of Setting and Locking Tools
suitable for a wide range of Ford petrol and diesel engines.
Includes camshaft and flywheel locking tools various timing pins
plus a camshaft sprocket removal tool.
Also suitable for Land Rover / Mazda / PSA / Suzuki and Volvo vehicles.

Ford and Mazda Timing Tool Set
t Click picture for more information

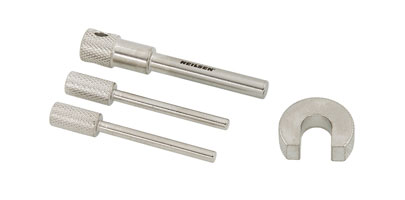

Timing Tool Set - Citroen / Peugeot

CT6362

Timing Tool Set - Vauxhall / Opel / Fiat

Diesel Engine Timing Tool Kit
for Citroen / Peugeot / Opel / Vauxhall
Fiat / Ford / Mazda / Renault / Volvo
With Flywheel Locking Pin
Injection Pump Locking Pins
Tensioner Retaining Tool

Timing Tool Set - Citroen / Peugeot
t Click picture for more information

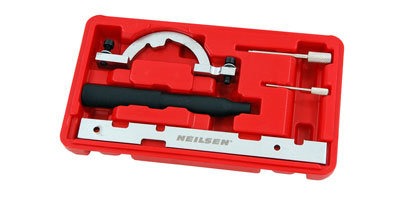

Vauxhall / Opel Engine Timing Tool Set

CT3525

Timing Tool Set - Vauxhall / Opel

Vauxhall / Opel Timing Tool Set
For timing chain and valve train servicing on
1.0 12V | 1.0 16V | 1.2 16V | 1.4 16V Engines
on Agila / Astra / Corsa / Meriva / Tigra Models
With Camshaft Setting Plate
Crankshaft Locking Pin
Timing Disc Positioning Gauge
Chain Tensioner Locking Pin

Vauxhall / Opel Engine Timing Tool Set
t Click picture for more information

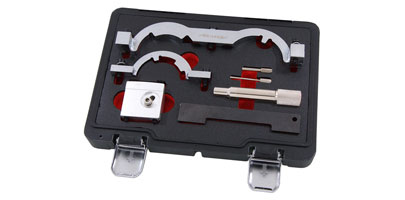

Vauxhall / Opel Engine Timing Tool Set

CT4423

Timing Tool Set - Vauxhall / Opel

Vauxhall / Opel Timing Tool Set
for 1.0 / 1.2 / 1.4 Petrol Engines
Tools for locking the cam and crank shafts in position
to allow the removal and replacement of the timing chain
fitted to the Vauxhall / Opel Vauxhall / Opel twin Cam engines.
Removal of the timing chain will require the removal of the sump.
Crankshaft Locking Pin and Camshaft Setting Plate
Camshaft Sprocket Holding Tool
VVT Sensor Setting Tools
2 Tensioner Locking Pins

Vauxhall / Opel Engine Timing Tool Set
t Click picture for more information

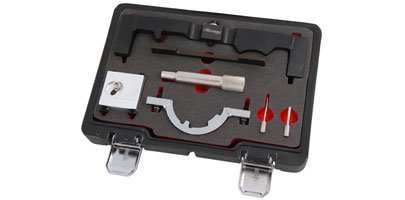

Vauxhall / Opel Engine Timing Tool Set

CT4985

Timing Tool Set - Vauxhall / Opel

Vauxhall / Opel Timing Tool Set
for 1.0 / 1.2 / 1.4 Petrol Engines
Camshaft Sensor Disc Setting Tools
Camshaft Inlet Adjustment Tool
Camshaft Locking Plate
Crankshaft Locking Pin
Belt and Chain Tension Pins : 2.5mm | 4mm
Suitable for the following Vauxhall / Opel models:
Adam / Ampera / Astra-J / Corsa-D / Insignia / Meriva-B / Mokka / Zafira-C / Aveo

Vauxhall / Opel Engine Timing Tool Set
t Click picture for more information

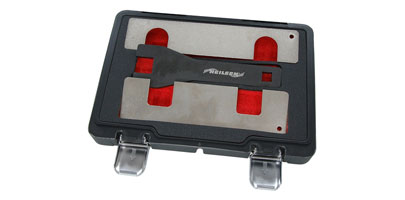

Vauxhall / Opel Engine Timing Tool Set

CT5859

Timing Tool Set - Vauxhall / Opel

Vauxhall / Opel Timing Tool Set
for 1.0 / 1.4 / 1.5 Petrol Engines and Turbo Petrol Engines
Camshaft Alignment Tool
Camshaft Alignment Plate
Balancer Shaft Alignment Tool
Applicable to :
Adam / Astra K / Corsa-E /
Insignia-B / Mokka-X and Viva ( Karl ) 2014 onwards

Vauxhall / Opel Engine Timing Tool Set
t Click picture for more information

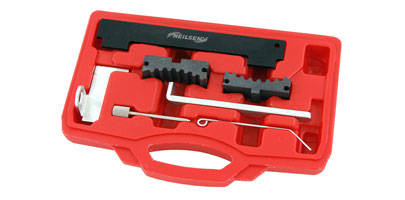

Vauxhall / Opel Engine Timing Tool Set

CT3766

Timing Tool Set - Vauxhall / Opel

Vauxhall / Opel Timing Tool Set
For vehicles with 1.6 | 1.8 16V Engines.
With Camshaft & Sprocket Locking Tools
Flywheel Holding Tool
Locking Pins.
Applicable to : Astra-G | H | Corsa-D | Insignia | Mervia
Signum | Vectra-C | Zafira-B / 2003 - 2011
Also fits Chevrolet Cruze | Orlando 1.4.
Fiat Croma | Alfa Romeo 159 / 2003 - 2012.

Vauxhall / Opel Engine Timing Tool Set
t Click picture for more information

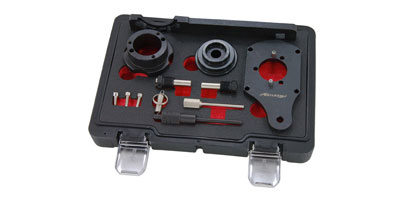

Vauxhall / Opel Engine Timing Tool Set

CT5822

Timing Tool Set - Vauxhall / Opel

Vauxhall / Opel Timing Tool Set
For 1.3 CDTI Corsa E Diesel Engines from 2015
For setting / adjusting engine timing and re-fitting the timing chain.
Crankshaft Flange Holding Tool
Crankshaft Locking Pin
Camshaft Locking Tools
Camshaft Sensor Disc Adjusting Tool
Timing Chain Cover Centring Tool
Timing Chain Tensioner Locking Pin

Vauxhall / Opel Engine Timing Tool Set
t Click picture for more information

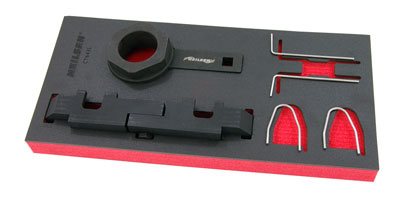

Vauxhall / Opel Engine Timing Tool Set

CT6431

Timing Tool Set - Vauxhall / Opel

Vauxhall / Opel Timing Tool Set
For 1.6 SIDI | SIDI Turbo | SIDI Turbo EcoFLEX Engines
For checking and setting the engine timing when replacing the timing chain.
Camshaft Alignment Tool
Crankshaft Pulley Holding Tool
Balance Shaft Sprocket Locking Tools
Chain Tensioner Locking Pin

Vauxhall / Opel Engine Timing Tool Set
t Click picture for more information

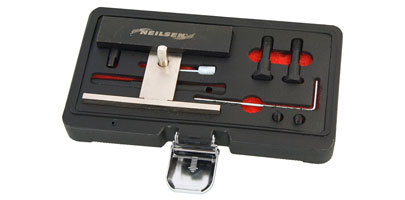

Vauxhall / Opel Engine Timing Tool Set

CT5322

Timing Tool Set - Vauxhall / Opel

Vauxhall / Opel Timing Tool Set
For 1.6 CDTI EcoFlex Diesel Engines.
Allows setting and checking the engine timing when
replacing the cylinder head gasket and timing chain etc.
Camshaft Adjusting Pin
Camshaft Sprocket Retaining Tool
Crankshaft Alignment Tool
Chain Tensioner Unit Locking Pin
Drive Belt Tensioner Locking Pin
Astra / Insignia-A / Meriva-B / Mokka-X / Zafira-C

Vauxhall / Opel Engine Timing Tool Set
t Click picture for more information

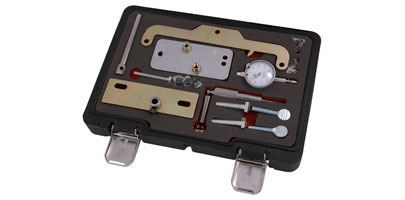

Vauxhall / Opel Engine Timing Tool Set

CT4437

Timing Tool Set - Vauxhall / Opel / Isuzu

Vauxhall / Opel / Isuzu Timing Tool Set
for 1.6D | 1.7D Diesel Engines from 1987 to 2004.
Camshaft Locking Tool
Dial Gauge Indicator
M6 / M8 Locking Bolts
Injection Pump Locking Pin
Flywheel Locking Pin
Flywheel Timing Bracket
Flywheel TDC Setting Tool

Vauxhall / Opel Engine Timing Tool Set
t Click picture for more information

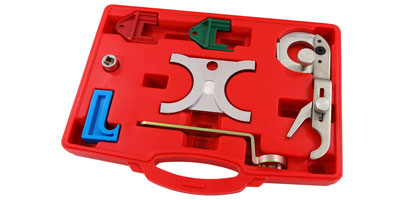

Vauxhall / Opel Engine Timing Tool Set

CT3889

Timing Tool Set - Vauxhall / Opel / Saab

Vauxhall / Opel / Saab Timing Tool Set
on 2.5 / 2.6 / 3.0 / 3.2 V6 Belt Drive EcoTec Engines
for locking the engine and checking timing marks
on V6 Belt Drive EcoTec Multi-Valve Petrol Engines.
Maintains crankshaft gear and camshaft sprockets
at TDC position for cam-belt work.
Features a belt guide roller adjuster.

Vauxhall / Opel Engine Timing Tool Set
t Click picture for more information

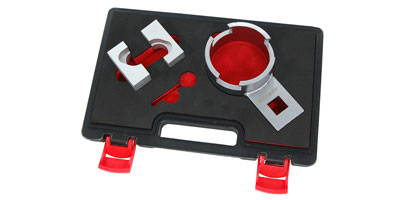

Vauxhall / Opel Engine Timing Tool Set

CT5878

Timing Tool Set - Vauxhall / Opel / Saab

Vauxhall / Opel / Saab Timing Tool Set
for 1.8 / 2.0 Petrol / Turbo Engine Chain Replacement
For twin camshaft engine chain replacement with -
Crankshaft Pulley Holding Tool
Camshaft Alignment Tool
Chain Tensioner Locking Pin

Vauxhall / Opel Engine Timing Tool Set
t Click picture for more information

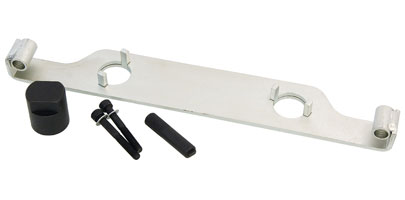

Vauxhall / Opel Engine Timing Tool Set

CT4879

Timing Chain Tool

Vauxhall / Opel / GM / Saab Timing Tool Set
For 2.0 | 2.4 Turbo Charged Twin Cam Petrol Engines.
Timing Chain removal and replacement kit with -
Camshaft Adjuster and Flywheel Holding Tool
Tension Plunger Reset Tools
Used in Chevrolet / Opel / Saab / Vauxhall vehicles 2008 - 2015

Vauxhall / Opel Engine Timing Tool Set
t Click picture for more information

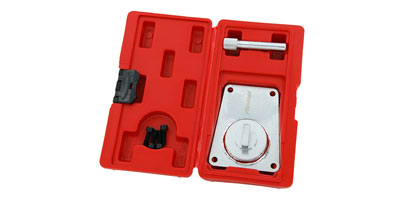

Vauxhall / Opel Engine Timing Tool Set

CT4059

Timing Tool Set - Vauxhall / Opel

Vauxhall / Opel / Chevrolet Timing Tool Set
for 2.0L Common Rail Diesel Engines.
Crankshaft and Camshaft positioning and locking tools
for setting the engine timing when changing the timing belt.
Engine Codes : Z20DM | Z20DMH
LLWZ20DMH | RA 420 | Z20S1 | Z20S3 | Z20S4 | Z20S5

Vauxhall / Opel Engine Timing Tool Set
t Click picture for more information

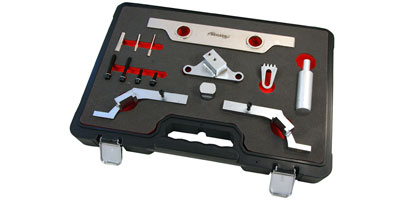

Vauxhall / Opel Engine Timing Tool Set

CT4984

Timing Tool Set - Vauxhall / Opel

Vauxhall / Opel / GM / Saab Timing Tool Set
For 2.0 | 2.4 Turbo Charged Twin Cam Petrol Engines.
Timing Chain removal and replacement kit with -
Camshaft Adjuster and Flywheel Holding Tool
Tension Plunger Reset Tools
Used in Chevrolet / Opel / Saab / Vauxhall vehicles 2008 - 2015

Vauxhall / Opel Engine Timing Tool Set
t Click picture for more information
Vauxhall / Opel Engine Timing Tool Set

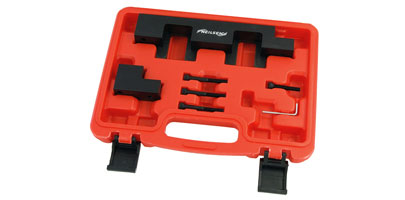

CT5316

Timing Tool Set - Vauxhall / Opel

Vauxhall / Opel Timing Tool Set
For 2.0 CDTi EcoFLEX Engines
Allows servicing of the timing chain inside the cylinder head.
With Camshaft Alignment Tool
Chain Tension Locking Pin.
Suitable for Cascada / Insignia & Country Tourer / Zafira-C Tourer

Vauxhall / Opel Engine Timing Tool Set
t Click picture for more information

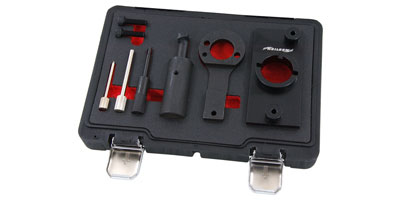

Vauxhall / Opel Engine Timing Tool Set

CT5317

Timing Tool Set - Vauxhall / Opel

Vauxhall / Opel Timing Tool Set
For 2.0 CDTi and 2.0 CDTi EcoFLEX Engines from 2014.
With Auxiliary Belt Tensioner Locking Pin.
Crankshaft Holding / Timing Tools.
Camshaft Locking Pin.
High Pressure Fuel Pump Sprocket Locking Tool.
Appicable to : Cascada / Insignia Tourer & Zafira-C Tourer

Vauxhall / Opel Engine Timing Tool Set
t Click picture for more information
Vauxhall / Opel Engine Timing Tool Set

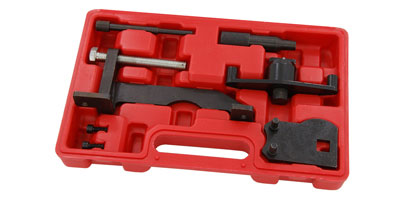

CT3519

Timing Tool Set - Vauxhall / Opel

Vauxhall / Opel / Saab Timing Tool Set
for 2.0 | 2.2 EcoTec Diesel Engines
With Adjustment Wrench / Bracket
Injection Pump Timing Pin
Crankshaft Setting Pin
Camshaft Setting Plate

Vauxhall / Opel Engine Timing Tool Set
t Click picture for more information
Vauxhall / Opel Engine Timing Tool Set

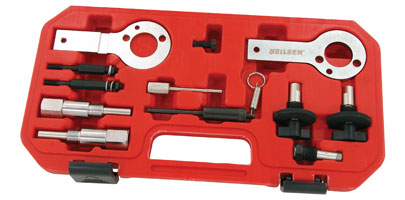

CT3148

Timing Tool Set - Vauxhall / Opel / Saab

Vauxhall / Opel / Saab Timing Tool Set
For Fiat Chain Drive and Belt Drive Engines fitted to
Vauxhall / Opel / Saab 1.3 CDTi and 1.9 CDTi Vehicles.
Camshaft Alignment Tools
Crankshaft Timing Tool
Crankshaft Alignment Pin & Tools
Tensioning Pin

Vauxhall / Opel Engine Timing Tool Set
t Click picture for more information

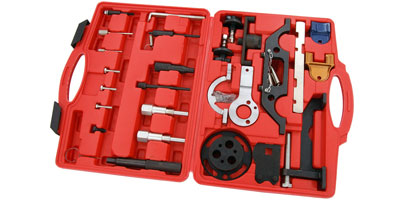

Vauxhall / Opel Engine Timing Tool Set

CT3428

Timing Tool Set - Vauxhall / Opel

Vauxhall / Opel / GM Timing Tool Set
and Renault and Saab equivalent engines.
1.3 CDTi 16V | 1.9 CDTi | 2.0 DTi | 2.2 DTi Diesel
Also 1.0 12V / 1.2 / 1.4 / 1.6 / 1.8 / 2.0 / 2.2 16V Petrol
For Locking Camshafts / Crankshafts when changing
Timing Chains and installation of Injection Pumps
and Water Pumps on GM 4 cylinder engines.

Vauxhall / Opel Engine Timing Tool Set
t Click picture for more information

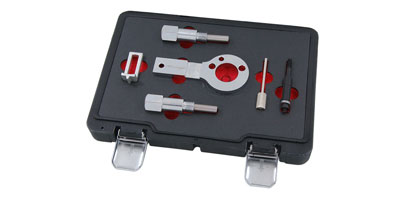

Diesel Timing Tool Set

CT3378

Timing Tool Set - Vauxhall / Opel

Vauxhall / Opel Timing Tool Set
for 1.9 CDTI Diesel Engines
Timing and Locking Tool Kit for Camshafts and Crankshafts.
For Servicing and adjusting Timing belts -
includes Flywheel Holding Tool
Applicable to : 1.9 CDTI / TID / TTID & 2.0 CDTI / ECOFLEX

Diesel Timing Tool Set
t Click picture for more information
Camshaft Locking and Setting Kit

CT3563

Timing Tool Set - Vauxhall / Opel / Fiat

Vauxhall / Opel / Fiat Timing Tool Set
for 2.2 Chain Drive Petrol Engines.
Camshaft Locking and Setting Tool
Essential for engine timing when carrying out cylinder head work.
Engine Codes : Z22SE | Z22YH
OEM Codes : KM-6148 | KM-6077

Camshaft Locking and Setting Kit
t Click picture for more information
Water Pump Sprocket Retainer

CT3564

Water Pump Sprocket Retainer

Vauxhall / Opel Pump Sprocket Retainer
For 2.2 Chain Drive Petrol Engines.
Used to keep the engine in the timed position during
removal / installation of the coolant pump.
Allows the pump to be replaced without the timing chain being disturbed.
OEM Codes : J-43651 | KM-43651

Water Pump Sprocket Retainer
t Click picture for more information
Water Pump Sprocket Retainer

CT6449

Water Pump Sprocket Retainer

Water Pump Sprocket Holding Tool
for GM Ecotec engines.
Holds the timing chain and gear in place while
removing or installing water pump on
Chevrolet / Opel / Vauxhall Ecotec engines.
Simply remove access plate from front cover and install the tool.
OEM Code : EN-43651.

Water Pump Sprocket Retainer
t Click picture for more information
41mm Water Pump Wrench

CT1377

Water Pump Wrench - 41mm

41mm Water Pump Wrench - 1/2in.Dr
For use on older GM - Vauxhall / Opel engines
where the water pump is used to adjust the camshaft belt tension.
Also used on Chevrolet / Daewoo vehicles.
Engines : 1.2 / 1.3 / 1.4 / 1.6V / 1.6D / 1.8
OEM Codes : KM421A | J-42492 | J-42492-A

41mm Water Pump Wrench
t Click picture for more information
46mm Water Pump Wrench

CT1380

Water Pump Wrench - 46mm

46mm Water Pump Wrench - 1/2in.Dr
For use on older Vauxhall / Opel engines
where the water pump is used to adjust the camshaft belt tension.
Engines : 1.6 ( 87 ) 1.7D / 1.8 ( 87 ) / 2.0 litre
OEM Code : KM409A

46mm Water Pump Wrench
t Click picture for more information
Renault Engine Timing Tool Set

CT3152

Timing Tool Set - Renault / Volvo

Renault Timing Tool Set
Petrol 1.2 | 1.4 | 1.6 | 1.8 | 2.0 | 16V | 2.5 20V DOHC
Clio | Espace | Kangoo | Laguna | Megane
Rapid | Safrane | Scenic | Trafic | Twingo
also Diesel 1.9 | 2.5 | 2.8
Opel Arena / Movano and Volvo V/S 40

Renault Engine Timing Tool Set
t Click picture for more information
Renault Engine Timing Tool Set

CT4988

Timing Tool Set - Renault / Nissan

Renault Timing Tool Set
For Dacia / Nissan / Opel / Renault Diesel and Petrol engines :
1.2 | 1.4 | 1.6 | 1.8 | 2.0 | 16V
1.5DCI | 1.6D |1.9TD | 1.9DCI | 1.9DTI | 1.9CDTI
2.1TD | 2.2DCI | 2.2DTI | 2.2TD | 2.5DCI | 2.5CDTI | 2.5TD | 2.8D

Renault Engine Timing Tool Set
t Click picture for more information
Renault Engine Timing Tool Set

CT3522

Timing Tool Set - Renault / Nissan / Opel

Renault Timing Tool Set
For 1.5 / 1.9 / 2.2 / 2.5 Diesel Engines
Also found in Nissan|Vauxhall|Opel vehicles.
for positioning and locking the crankshaft and camshaft
when servicing the timing belt and engine.
Inlet Camshaft Locking Tool
Injection Pump Locking Tool
Exhaust Camshaft Locking Tool.
Tensioner Tool Set in 3 parts
Crankshaft Timing Pins

Renault Engine Timing Tool Set
t Click picture for more information
Renault Engine Timing Tool Set

CT3153

Timing Tool Set - Renault

Renault Timing Tool Kit
for Camshaft Regulation on 1.5 / 1.9 / 2.2 / 2.5 DCI Diesel Engines
Crankshaft Alignment Pin.
Exhaust Camshaft Alignment Tool.
Inlet Camshaft Alignment Tool.
Applicable to :
Renault Espace 2.2 DCI-Master 2.2 / 2.5 DCI
Opel : Astra-G 2.2 | Movano 2.2 | Vectra-B 2.2 | Zafira 2.2

Renault Engine Timing Tool Set
t Click picture for more information
Renault Timing Tool Set

CT3518

Timing Tool Set - Renault / Nissan

Renault Timing Tool Set
for 1.4 / 1.6 / 1.8 / 2.0 16V Belt Drive Engines
Suitable for timing belt replacement on
Renault and some Nissan and Vauxhall / Opel vehicles.
With Camshaft Rule and Locking Pins.
OEM Codes : MOT1489 | MOT1496 | MOT1054

Renault Timing Tool Set
t Click picture for more information
Vauxhall / Opel / Nissan / Renault Timing Tool Set

CT3618

Timing Tool Set - Renault / Nissan

Renault Timing Tool Set
Also for Nissan / Vauxhall / Opel vehicles
with 1.6 | 2.0 | 2.3 DCI / CDTI Chain Drive Engines
Crankshaft Pulley Holding Tool
Camshaft Adjusting Tool
Camshaft Gear Alignment Tool
Crankshaft Adjusting Tool
Chain Tensioner Locking Tool
Belt Tensioner Locking Tool
Engine Codes : M9R / M9T

Vauxhall / Opel / Nissan / Renault Timing Tool Set
t Click picture for more information
Vauxhall / Opel / Nissan / Renault Timing Tool Set

CT4986

Timing Tool Set - Renault / Nissan

Renault Timing Tool Set
For 1.6 DCi / CDTi Chain Drive Engines
Also for Nissan / Opel / Vauxhall vehicles
Includes - Crankshaft Pulley Holding Tool
Camshaft Adjusting Tool
Camshaft Gear Alignment Tool
Crankshaft Adjusting Tool
Chain Tensioner Locking Tool
Belt Tensioner Locking Tool.

Vauxhall / Opel / Nissan / Renault Timing Tool Set
t Click picture for more information
Diesel Pump Setting / Timing Tool

CT5127

Diesel Pump Setting / Timing Tool

Diesel Pump Setting and Timing Tool
for Renault / Mitsubishi / Opel vehicles with
F8Q and F9Q diesel engines and adjustable pump wheels.
27mm Hexagon Special Socket 1/2in.drive.
Setting tool with 3 x 4 mm pins to adjust the pump.
M10 to M8mm Adaptor for Bosch pumps.

Diesel Pump Setting / Timing Tool
t Click picture for more information



Product Search

Search Icon
Section 1 Icon Section 2 Icon Section 3 Icon Section 4 Icon Section 5 Icon Section 6 Icon Section 7 Icon Section 8 Icon Section 9 Icon Section 10 Icon

Cannon Tools Limited   •  20 Station Road,  Rowley Regis,  West Midlands,  B65 0JU,  United Kingdom

 T +44 (0) 121 561 6760
