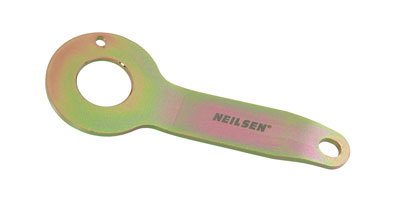

BWW / Mini Timing Tools
CT5663
Crankshaft Locking Tool - BMW
BMW N47 Diesel Crankshaft Locking Tool
For locking the crankshaft in timing position.
Required when replacing one of both timing chains.
Used to measure the amount of chain stretch without dismantling the whole engine.
Applicable to BMW N47 1.6 and 2.0L diesel engines from 2013.

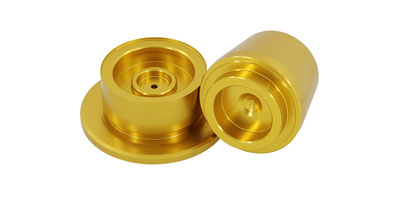

CT5569
Crankshaft Timing Case Remover - BMW
BMW Front Crankshaft Timing Case Cover Remover / Installer
For correcting alignment of the front crankshaft timing case cover / at bottom
also helps prevent damage to the new seal during fitting.
Applicable to : BMW 1 | 2 | 3 | 4 Series - X1 | X2
Mini Clubman / Hatch / Countryman.
CT5468
Crankshaft Pulley Holder - BMW
BMW Crankshaft Pulley Holder
For holding the crankshaft pulley while loosening or tightening
the middle pulley bolt then removing and replacing vibration dampers.
Applicable to : BMW N47 and N57 engines.
Vibration Damper Brace
Holding Sleeve and Screw : M8 for N47 / N57
Holding Sleeve and Screw : M10 for N47TU / N57TU
CT3879
Diesel Engine Timing Kit
Diesel Engine Timing Kit
A comprehensive kit designed for
setting camshaft and crankshaft timing position.
Suitable for 1.8 | 2.0 and 2.5 chain drive diesel engines.
With Timing Chain Compressor and Locking pins
Injection Pump Lever and Sprocket Puller
Crankshaft Holding Tool

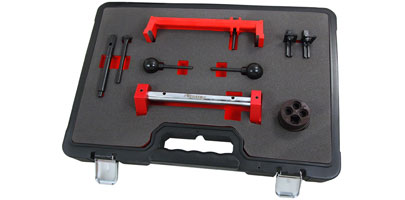

CT4600
Timing Tool Set - BMW - M3 / S54
BMW Timing Tool Set
For checking and setting camshaft timing when installing
the VANOS adjustment unit on BMW M3 vehicles with
chain drive 3.2L / 6 cylinder 24 valve S54 petrol engines.
Valve timing checking tool.
Camshaft setting tool and pins.
VANOS alignment lever.
Crankshaft Turning Tool and Locking Pin.
VANOS Spacers.

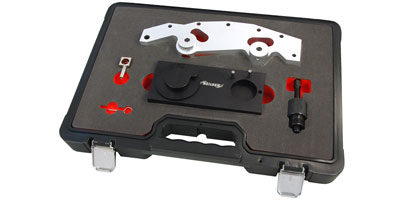

CT3586
Timing Tool Set - BMW - M52 / M56
BMW VANOS Camshaft Alignment Tool Set
Tools to assemble and time the VANOS units on
BMW M52TU / M54 and M56 - 6-cylinder engines.
Alignment Jig Adjusting plate for setting valve timing.
Jig for pre-assembling secondary chain sprockets.
Lock Pin secures chain tensioner during timing.
VANOS Compressed Air Connector

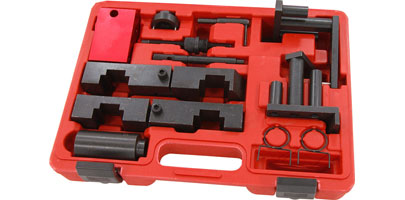

CT3770
Timing Tool Set - BMW - M54 / M62
BMW M54 / M60 / M62 VANOS Timing Tool Set
with 2 camshaft alignment jigs
Top dead centre pin to align the flywheel
Rigid chain tensioner to tension primary chain.
2 jigs to lock the sensor wheels in place during timing.
Special deep thin wall 32mm socket
Chain Tensioning Bracket Trestle
For VANOS components and adjusting cam timing.

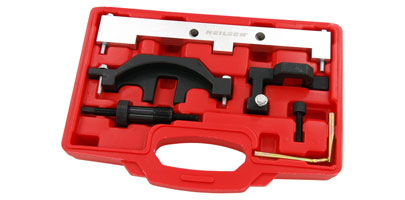

CT3556
Timing Tool Set - BMW - N40 / N45
BMW Timing Tool Set
For setting and adjusting the timing on BMW 1.6 petrol engines
with Vanos Alignment Plate
Camshaft Setting Plate - Inlet
Camshaft Setting Plate - Exhaust
Timing Chain Tensioner Pre-load tool
Flywheel Locking Pin
Camshaft Setting Plate Securing Screw.

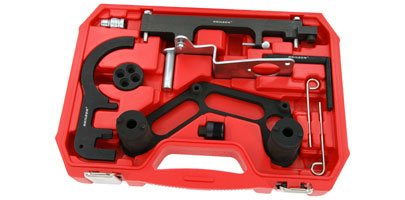

CT4885
Timing Tool Set - BMW - N47 / N47S
BMW N47 / N47S Diesel Engine Timing Tool Set
for turbocharged chain drive BMW 4 & 8 cylinder diesel engines
2.0 N47 | N47S | N57 | N57S / 2007-2015
Camshaft Locking
Sprocket Puller
Crankshaft Lathe
Crankshaft Wheel Locking Pin
Crankshaft holding & Locking tools
2 Pins to lock the chain tensioner

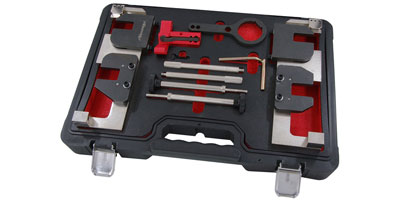

CT5481
Timing Tool Set - BMW - N63 / S63
Camshaft Alignment Tool Set
for BMW S63 and N63 4.4L V8 Engines
Engineered to locate the camshaft in TDC position
to check and adjust the timing chain tensioner on -
S63 - 5 series F10 M5 2010 - 2014
S63 - 6 series F06 / F12 / F13 M6 2011 - 2014
S63 - 6 series F06 650i / 650ix 2011 - 2014
N63 - 7 series F02 ALPINA B7LX 2013 - 2014
N63 - X series F15 X5 2012 - 2014

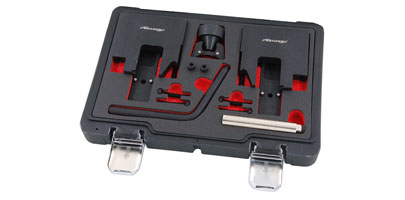

CT5744
Timing Tool Set - BMW - S65
Engine Timing Tool Set for BMW S65
Provides alignment to top dead centre point to maintain the engine.
Camshaft Alignment Tools
Chain Tension Guide Locking Tool
Split Camshaft Gear Setting Tools
Mounting Screws for camshaft adjusting tools
Applicable to : BMW M3 E90 / E92 / E93 2007-2013
Engine codes: S65 B40A / 4.0L

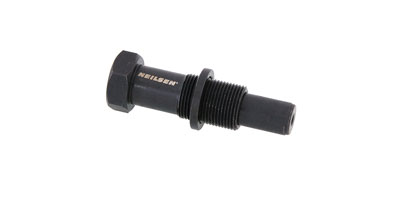

CT5577
Timing Tool - BMW / Mini
BMW Mini Camshaft Drive Chain Wear Indicator
For checking the timing chain stretch on BMW Mini petrol engines
without dismantling the engine.
Applicable to Mini Clubman / Club Van / Countryman / Coupe
Paceman and Roadster with 1.4L and 1.6L engines.
Also useful on equivalent PSA engines.
OEM number : 2 353 281

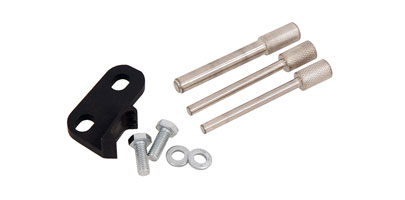

CT4414
Timing Tool Set - BMW / Mini
BMW Mini Diesel Timing Tool Kit
Engine timing tool kit for diesel BMW Mini
with engine codes W16D16 / 9HZ and W16D16UO
used on Mini / Clubman 07-10 with chassis R55 | 56 | 57.
Also used on -
Citroen: 1.6 diesels in C2 | C4 | C5 |
Xsara Picasso | Grand Picasso | Berlingo
Peugeot : 1007 | 206 | 307 | 207 | 308 | Partner Mk3

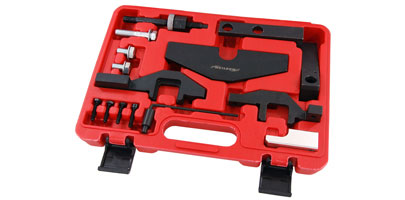

CT2939
Timing Tool Set - BMW / Mini
Engine Timing Tool Kit for BMW Mini One 2001-06
Mini Cooper 2001 - 06 and Mini Cooper S 2002 - 06
Set contains Camshaft Sprocket Holding Tool
Engine Support Bracket and Tension Assembly Tool
This kit is specifically designed for petrol engines on pre 2009 Mini One / Cooper and Cooper S models.
Engine Codes : W10 | W11 | N14

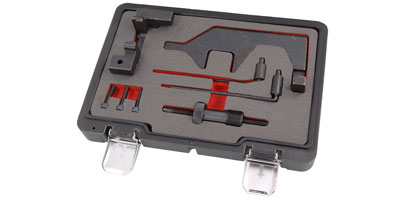

CT4430
Timing Tool Set - BMW / Mini
BMW Mini Timing Tool Set - N13 / N18
Comprehensive tool kit for setting camshaft timing on
1.6 petrol engines in BMW and Mini since 2012.
To lock camshafts in 90 degree piston position / TDC.
Camshaft locking fixtures with hold-down bolts
Crankshaft locking pins
Rigid Chain Tensioner

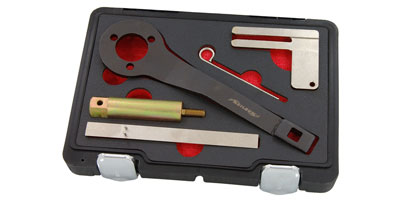

CT4436
Timing Tool Set - BMW / Mini / PSA
BMW Mini / PSA
Petrol Engine Timing Chain Service Tool Kit
Essential for the removal or installation of the timing chain assembly
on a range of BMW / Mini and PSA petrol engines.
Kit includes balance shaft aligners
crankshaft gear holding tools
and chain tension locking pin.
