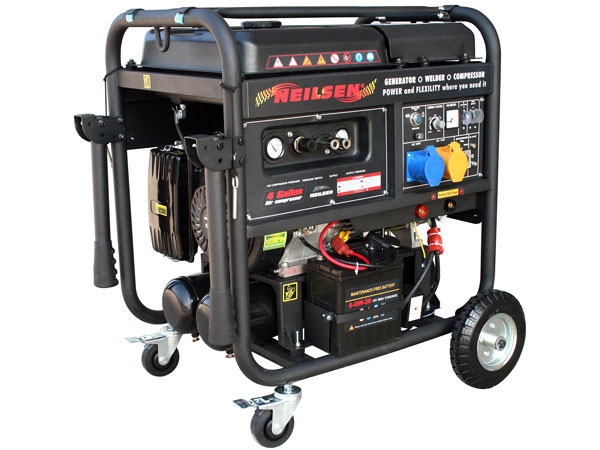

GENERATOR
Voltage Regulate : AVR
Frequency : 50Hz
Rated AC Voltage : 230V / 115V
Max. AC output : 4.2KW
Rated AC output : 4.0KW for 230V AC / 2.0KW for 115V AC
Rated Current : 17.4A
Power Factor : 1
IP Class : IP23M

WELDER
Max rated welding current : 180A
Max load voltage : 27.2V
Working Frequency : 50Hz
Duty cycle for Max load : 60 percent
Electrode Diameter : 2.6 - 4.0mm

COMPRESSOR
Voltage : 230V
Frequency : 50Hz
Max. pressure : 8 bar
Rated power : 1.1KW

ENGINE
Model: JF420
Type : 4-Stroke OHV Forced Air cooled
Displacement : 420ML
Max. Output : 15HP
Rated speed : 3000rpm
Fuel : Unleaded Gasoline
Fuel Tank Capacity : 25L
Continuous operating time : 8 hours
Ignition system : T.C.I.
Starting system : Electric start
Operating Noise Level / 7M : 97dB/A
