CT4755

Shock Absorber Tool Set - 14pc

14pc Shock Absorber Tool Set
Specifically designed for repairing and replacing shock absorbers.
Go-thru Ratchet - 21mm Hex
Go-thru Deep Sockets : 16 | 17 | 18 | 19 | 21 | 22 | 24mm
Hex Bits : 6 | 7 | 8mm - 1/2in.Dr
Sliding T-Bar - 1/2in.Dr
Slot Bit Sockets : 5 x 8mm | 6 x 8mm - 1/2in.Dr
Suitable for GM / Mercedes and VAG vehicles.

Suspension Servcie Tool Set

CT4023

Shock Absorber Tool Set - 19pc

19pc Shock Absorber Tool Set - 1/2in.Dr
For Automotive Suspension Spring Struts.
With 21mm Go-Thru Ratchet and Sliding T-Bar
Go-Thru Deep Sockets : 16 |17 | 18 | 19 | 21 | 22 | 24mm
120mm Oval Sockets : 5 x 8 | 6 x 8 | 7.1 x 9.6mm
120mm Hex Bits : 6 | 7 | 8mm
120mm Hex Sockets : 7 | 8 | 9mm
120mm T50 Star Bit.

Suspension Servcie Tool Set

CT2910

Bushing Service Tool - VAG

VW Audi Rear Suspension Tool
For replacing the rear axle mounted bushings
Used in-situ on the vehicle without the need to remove the axle assembly
Allows the bushings to be fitted quickly without damaging vehicle.

VAG Rear Suspension Tool

CT4014

Strut Leg Pry Socket Set - 2pc

2pc Strut Leg Pry Socket Set
Unique shape bits
7 x 5mm | 8.2 x 5.5mm - 1/2in.Dr
Reduces risk of damage to hub casting.
Applicable to Ford | Peugeot | Renault | VAG.

Strut Leg Pry Socket

CT5197

Suspension Joint Pin Socket

Suspension Joint Pin Socket - 1/2in.Dr
For use on castellated suspension joint nuts.
Applicable to PSA - Citroen / Peugeot Vehicles :
Citroen BX : 9 / 1982-1994
C5 Xantia
Peugeot 305 : 7 / 1982-1990 | 405 / 6 / 1987 | 406 | 605 | 607 etc.

Suspension Joint Pin Socket

CT4405

Suspension Strut Socket - VAG

Suspension Strut Socket - VAG
Go-Thru Socket for use with a 22mm Spanner or Socket
For loosening Audi / VW suspension strut nuts.

Suspension Strut Socket - VAG

CT6393

Suspension Nut Socket - Suzuki

Suzuki Suspension Castle Nut Socket
4 Pin / 1/2in.Dr Socket
External 43mm / Internal 30.5mm
Pins : 5mm x 6.3mm
Applicable to : V650 / 1000 | DI650 / 1000 | V-Storm
Also Hayabusa / Bking and GSX-R750 / 1000 / 1100

Motorcycle Suspension Nut Socket

CT6379

Suspension Nut Wrench - VAG

13mm Suspension Top Mount Nut Wrench
for VAG - Audi | Seat | Skoda | VW
13mm 6 / 8 point Dual Sided Swivel Socket
120mm Total Length with 3/8in.drive.
Specialist tool designed to be used when
removing the top of Macpherson strut mounts.
Flexible for hard to reach parts allowing access
to the strut mount with minimal effort due to the flexible design.

Suspension Strut Nut Socket - VAG

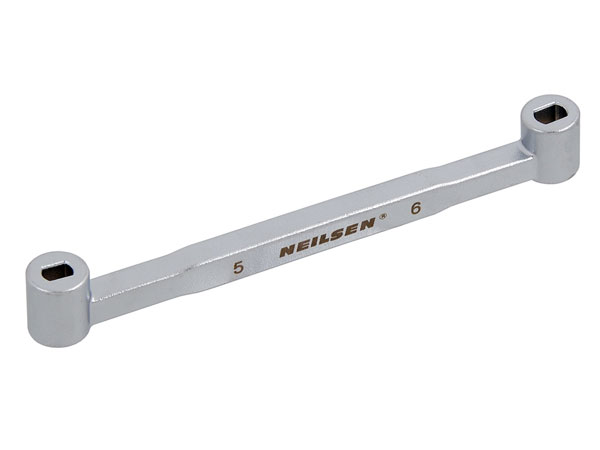

CT4493

Suspension Strut Tool

Suspension Strut tool
Dual Size : 5 / 6mm x 182mm long.
Prevents the damper piston rod from rotating
while removing and replacing the rear strut.
Suitable for Vauxhall / Opel / Ford / VAG and Japanese vehicles.

Suspension Strut Tool

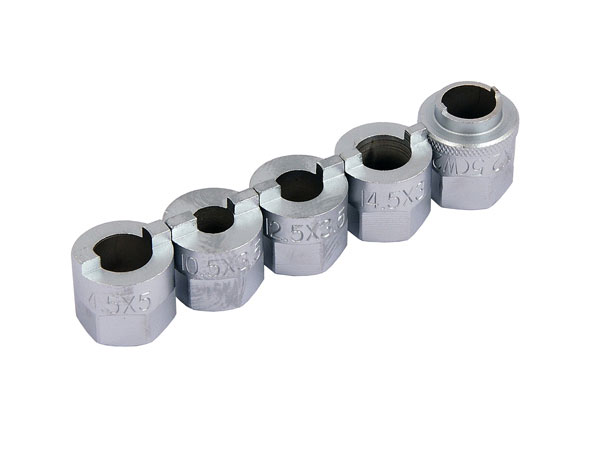

CT3675

Strut Nut Tool Set - 5pc

5pc Strut Nut Tool Set
Used in conjunction with a 22mm Spanner or Socket.
Sizes - 10.5 x 3.5 | 12.5 x 3.5 | 14 x 2.5 | 14.5 x 3 | 14.5 x 5
For Macpherson front and rear struts on Audi / VW.
Holds the damper shaft during the removal of the strut nuts.

Strut Nut Tool Set - Audi / VW

CT0538

Suspension Turnbuckle Service Kit

Turnbuckle for Shock Absorber Top
Unique and comprehensive set of tools
for servicing spring or strut shock absorbers.
Suitable for a wide variety of vehicles
in conjunction with spring compressors.
Chrome Vanadium sockets and
Strut Nuts with 22mm hex drive.
Specialist bits with 10mm hex drive
Go-Thru Ratchet : 19 | 22mm.

Suspension Turnbuckle Service Kit

CT2566

Axle Backlash Tester

Axle Backlash Tester
For localising the source of common faults around the wheel axle.
Suitable for testing under load conditions on cars up to 3.5 Tons.

Axle Backlash Tester

CT3755

Wishbone Suspension Arm Lever

Wishbone Extractor Tool
Suspension Arm Lever pushes down the suspension
for servicing the drive shaft or wheel bearing.
Total length - 1180mm
Comfortable rubber grip
Adjustable canter lever hook
Sliding adjustment for easy positioning

Wishbone Suspension Arm Lever

CT5393

Wishbone Lever Tool with Chain

Universal Wishbone Lever Tool with Chain
Maximum Traction : 500kg
Total Length with Hook : 1030mm
Clamping Height : 65mm to 265mm
Chain length including hook : approx. 660mm
Enables lowering of the wishbone and holds in the retracted position.
Ideal for replacing the wheel bearing / repairing struts or drive shafts.
Prevents damage to the ball joints and drive shaft sleeves.
Low height for easy and fast assembly.

Wishbone Lever Tool with Chain

CT3597

Camber Adjustment Tools - BMW

3pc BMW Camber Adjustment Tool Set
For adjusting the camber of many BMW vehicles
when using a BMW KDS type alignment system.
Tool remains on the spring strut until all screws
are tightened so no recalibration required.
Suitable for BMW models - E38 to E93

BMW Camber Adjustment Tools

CT0541

Camber Adjustment Tools - VAG

VAG Camber Adjustment Tool Set
22mm Hexagonal Spindles.
3 Spindle Lengths : 75 | 85 115mm.
Pressure width 135 to 175 mm.
75mm for Seat - Toledo | VW - Jeta / Golf
85mm for Seat - Cordoba | VW - Polo / 95>
115mm for Chrysler - Voyager

VAG Camber Adjustment Tool Set

CT3233

Coil Spring Compressor

2pc Coil Spring Compressor
355mm Jaw Capacity
For use On or Off vehicles when working on suspension struts
Can be use with a 1/2in.Dr Ratchet or 21mm Spanner / Socket

Coil Spring Compressor

CT0917

Coil Spring Compressor

2pc Coil Spring Compressor
For use with 21mm socket or spanner
Total Length : 280mm
For the quick and safe removal or installation of coil springs.
Suitable for passenger cars and light duty trucks.
Heavy duty steel construction.

Coil Spring Compressor

CT3692

Coil Spring Compressor Kit - 2pc

2pc Coil Spring Compressor Kit for MacPherson Struts
Compresses the coil spring to replace the shock absorber unit or spring.
Also allows for repairs on bent struts and strut tubes.
Forged construction threaded rod with built-in detention pins to help lock the coil in place.
Fast and easy set-up and extremely safe to use.

Coil Spring Compressor

CT3611

Coil Spring Compressor Kit

Heavy Duty Coil Spring Compressor with Brace
Adjustable brace to prevent accidental release of spring under load
enabling the parts of the tool used for removing the coil to always operate in parallel.
Range : 23mmm - 280mm
Capacity per pair : 1200 kg Max.
Use with a 19mm Socket or Wrench.

Coil Spring Compressor Kit

CT3505

Coil Spring Compressor

Heavy Duty Telescopic Coil Spring Compressor
with 100 - 185mm diameter capacity
Use with a 28mm Spanner or Impact Socket and Impact Wrench

Coil Spring Compressor

CT4978

Coil Spring Compressor

Heavy Duty Telescopic Coil Spring Compressor
For the assembly and disassembly of MacPherson Strut Springs
at the front and rear axle of many different vehicles.
with 100 - 265mm diameter capacity
Body : 450mm long
Max. Clamp Force : 2300kg
Use with a 24mm Spanner or Impact Socket with Impact Wrench

Coil Spring Compressor

CT1792

Coil Spring Compressor Set

Professional Heavy Duty Coil Spring Compressor Set
with 3 Pairs of Jaws for Macpherson Front and Rear Springs
For European and Japanese Vehicles.
Jaws Sizes : 65 -125mm | 88 -160mm | 126 - 212mm
with Robust Plastic Protectors for aftermarket springs

Coil Spring Compressor

CT2614

Coil Spring Compressor

Telescopic Coil Spring Compressor
70 / 130mm diameter for us on most vehicles
NOT for use with Impact Drivers.

Coil Spring Compressor

CT2614-1

Spare Winding Mechanism for CT2614

Replacement Winding Mechanism
for Coil Spring Compressor CT2614

Spare Winding Mechanism for CT2614

CT3538

Wishbone Suspension Spring Compressor

Universal Coil Spring Compressor
Angled Jaws for wishbone multi-link suspension.
Prevents overload and Improves safety.
Suitable for most vehicles
Citroen | Peugeot | Skoda | VW

Suspension Spring Compressor

CT2879

Spare Hydraulic Pump

Hydraulic Coil Spring Compressor Pump
for Coil Spring Compressors : CT1321 and CT1945

Spare Hydraulic Pump

CT1321

Coil Spring Compressor

Hydraulic Coil Spring Compressor
For use with 100mm to 250mm Springs
Ram Travel 340mm
Max Working Length 590mm

Coil Spring Compressor

CT1945

Coil Spring Compressor

Coil Spring Compressor Work Station
1000kg Foot Operated Hydraulic Unit
Quicker than using ratchet driven spring compressors
Suitable for Springs from 102mm to 160mm Diameter

Coil Spring Compressor

CT1946

Coil Spring Compressor

Coil Spring Compressor Station
1000kg Air Actuated Hydraulic Unit with Alternative Foot Operation
Quicker than using ratchet driven spring compressors
Suitable for Springs from 102mm to 160mm Diameter

Coil Spring Compressor

CT1946-1

Coil Spring Compressor Pedal

Replacement Pedal
for Coil Spring Compressor Station CT1946

Spare Pedal for Coil Compressor

CT6204

Coil Spring Compressor Guard Cover

Hydraulic Spring Compressor Guard Cover
Steel construction with Powder Coating.
Safety guard cover prevents injury.
Suitable for : CT1321 | CT1945 | CT1946

Spring Compressor Guard Cage
